Orionfold Arena

A cockpit for the models on your own machine

Orionfold Arena is a single-screen cockpit for running, comparing, and scoring local language models on one NVIDIA DGX Spark. Open it and you see the GPU’s live telemetry, every model you’ve published, the benches those models were measured on, and a leaderboard built from your own results — all on the machine under your desk, none of it leaving it.

It is for the solo builder who has accumulated a shelf of local models and nowhere to drive them from. If you fine-tune, quantize, and publish models on a Spark — or you simply keep a few good GGUFs warm and want to know which one to reach for — the Arena is the instrument panel that turns that shelf into something you can fly. Chat against the warm model, set two of them duelling, score an answer against a gold reference, and read the efficiency frontier to decide which quant earns its place. Everything is local-first and private by construction.

What it unlocks

The thing a Spark gives you that a hosted endpoint never will is a closed loop: the model, its evaluation data, the hardware it runs on, and the results all live in one place you control. The Arena is what happens when you put a cockpit over that loop.

For a researcher, that changes the tempo of the work. You can ask a real question — does the 8-bit quant of this reasoning model hold its accuracy, and what does it cost me in tok/s? — and answer it in the time it takes to load two lanes and read a chart, instead of standing up a harness and a spreadsheet. The efficiency frontier is a decision surface, not a vanity metric: it plots quality against throughput and marks the Pareto skyline, so “which model do I ship” becomes a place you point at rather than an argument you have. Because the reference benches travel with the models, you can re-score an answer against gold the moment it streams in — the eval is one drawer away from the chat, not a separate pipeline.

For a Spark operator, it is the difference between a directory of .gguf files and a control room. You watch the unified-memory envelope while a model runs, swap the on-demand local lane without disturbing the resident brain, and reach any surface with a keystroke. Nothing you type is uploaded; nothing you compare phones home unless you explicitly pick a hosted lane. The whole thing is a tool you could run on a plane.

The build story: one itch, one day

The itch was concrete. By late May I had published a shelf of artifacts under the Orionfold handle — a reasoning patent strategist, a legal model, a cyber model, a medical model, a finance chat model — and written more than fifty field-notes articles full of measured numbers. What I did not have was a single place to run them. Picking a model meant remembering a llama-server invocation; comparing two meant a terminal and a notebook; knowing which quant was the good one meant re-reading an article I’d written weeks earlier.

The first slice was unglamorous on purpose: a milestone-one skeleton with a spec and a bare leaderboard table dropped into the editorial site’s reading layout. It looked, in my own note at the time, like crap. But it proved the data path — the benches, the runs, and the artifact manifests could all be read into one page. From there the leap to a real product happened fast, because each new surface was a thin shell over work that already existed: telemetry over the Spark’s own counters, a leaderboard over a leak-proof mirror, chat and compare over the resident model, an eval drawer over the vertical benches the models were already scored on.

A day and an overnight later it was fourteen surfaces with its own flight-deck chrome, a live sidecar, and 125 tests. The numbers below are mined from the build itself — the git history, the source tree, and the Claude Code session transcripts — not estimated. They are the evidence for the “production tool in a day” claim, and the honest version is more interesting than a round one.

The build, measured. ~15.4 hours of wall-clock across one day and an overnight (thirteen commits, first to last); 12,733 lines of authored source — a Python sidecar (6,999), Preact islands (3,768), Astro pages (1,576), and JS libraries (390) — with built bundles excluded; 125 tests written alongside the features. The agentic effort behind it: 12 Claude Code sessions, 1,130 assistant turns, 233.2M tokens processed of which 228.1M (97.8%) were served from the prompt cache, and only 972k tokens actually generated. It was built 100% on Claude Opus 4.7; Opus 4.8 is the daily driver now. That ~98% cache ratio is the quiet reason agentic coding at this scale stays affordable — the model re-reads an enormous working context cheaply and spends fresh tokens only on the new work.

The build-metrics infographic is rendered by the site from the mined build: block; every figure traces back to assets/build-metrics.json.

Then it kept evolving. The infographic above is the launch snapshot — but the cockpit you see in the tour below is several sessions further on, every one of them driven by Claude Opus 4.8. Six more surfaces and refinements landed in the days after launch: a source-aware telemetry rail whose cells became fixed-window peak-bar charts; a live leaderboard that folds every chat and compare run into the rankings, each row badged Spark or OpenRouter; telemetry-style metric cards with per-session sparklines on the compare duel; a shared telemetry bus that closed a connection-leak on tab-switching; and an above-the-fold cockpit redesign with a breadcrumb top bar and a denser single-screen layout. Measured the same way, the arena source tree is 17,515 lines and 135 tests now — the same day-after-day leverage, applied to a tool that was already shipping. The post-launch block of build-metrics.json records that second arc.

Then a third arc — the v0.34 premium pass: a blue-indigo and DGX-gold palette replaced the original orange across every surface; a dedicated, self-dismissing welcome screen now greets a first-time operator before the cockpit; the cloud-model catalog and its spend tile hide until you wire your own OpenRouter key (your Advisor is local-first, and your key never leaves the box); and a guided console onboarding turns the bare curl … | sh install into a narrated flow — preflight, key capture, a named download manifest, and orientation cards that teach the product while the model pulls. The tour below is the v0.34 cockpit.

The feature tour

The journey now starts before the cockpit — at the install — and walks outward to the surfaces reached once you are warm.

It starts at the install — guided onboarding

fieldkit field-edition onboard — a Rich-rendered linear flow over the headless bring-up engine. It greets you, then checks the box against the tested DGX OS / driver / CUDA / Docker matrix before pulling a single byte. Play the cast above to watch the whole guided install; the stills below walk the same four beats.

A bare curl … | sh worked, but it read as a wall of pip output and a terse phase log — dev-shaped, not customer-shaped. The guided onboarding owns the experience while up still does the work underneath. If your embedder needs a free NVIDIA NGC key and you do not have one, it points you to the page and captures what you paste, writing it to ~/.nim/secrets.env on your box:

Then it names exactly what is downloading and why — your model, your bundled corpus, the cached images — and rotates orientation cards so the ~2–10 minute model pull teaches the product instead of being dead air:

It ends on a call to action, not a prompt — your Advisor is warm, and the cockpit opens to your welcome screen:

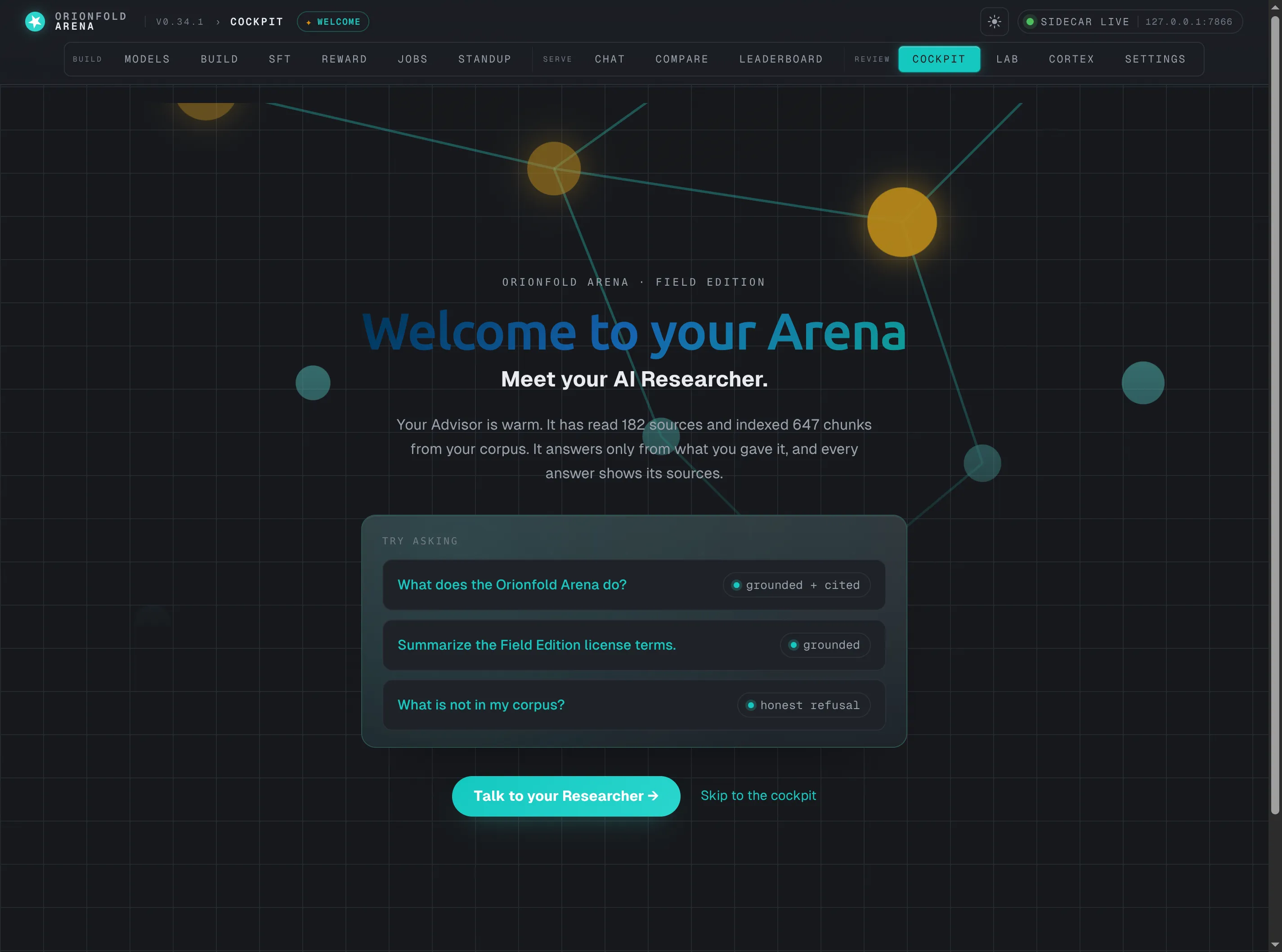

Your first run — the welcome

A dedicated, self-dismissing first-run surface. It greets your AI Researcher, states what is actually loaded — 182 sources, 647 chunks — and offers three prompts to try. The third, “What is not in my corpus?”, teaches honest refusal in a single turn.

You land here once. A flag remembers you have seen it, so the cockpit stops sending you here on later visits — and a quiet ✦ Welcome link in the top bar brings it back any time. The whole surface speaks the premium narrative voice; the dense working panes keep their instrument density. Two zones, one product.

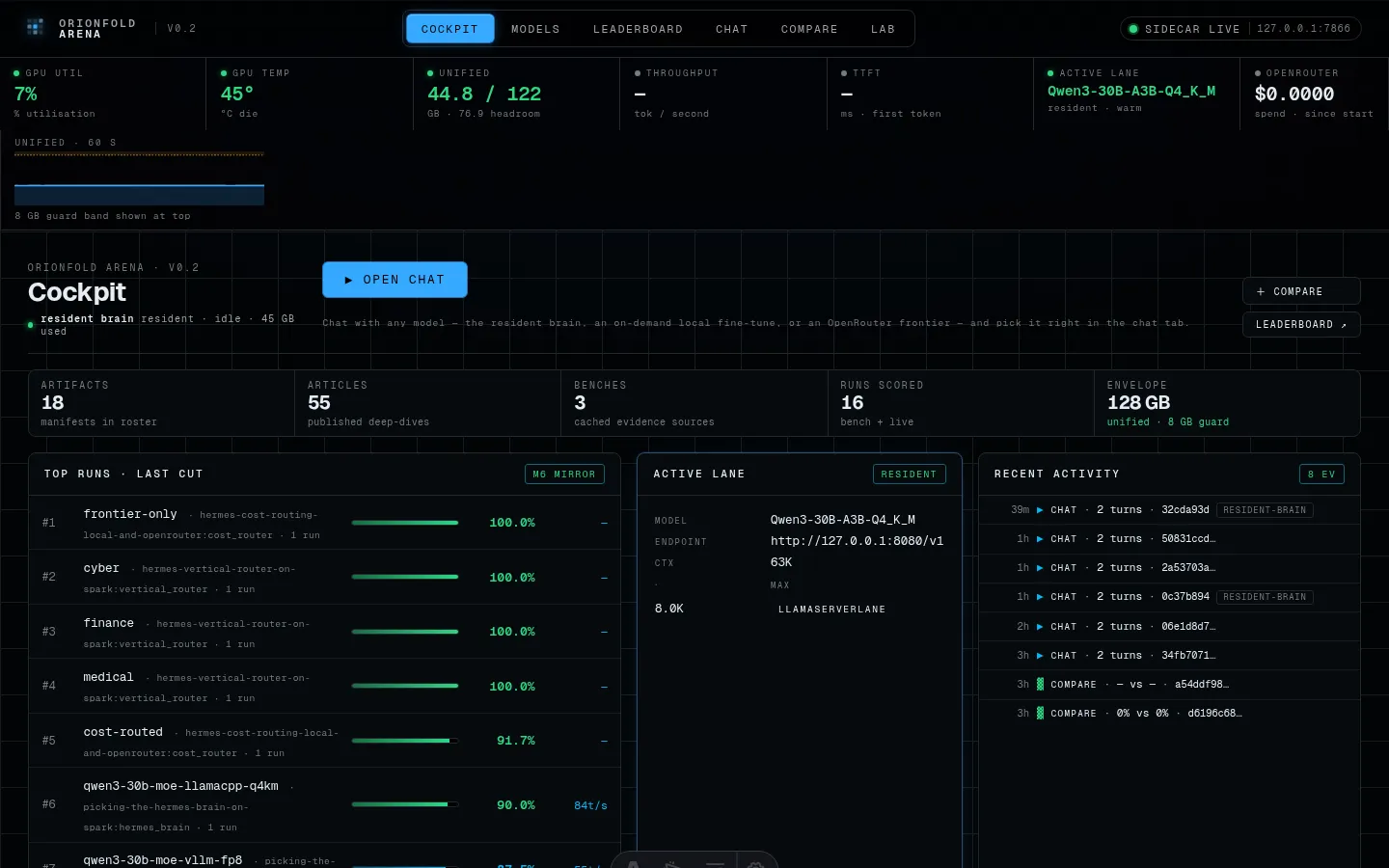

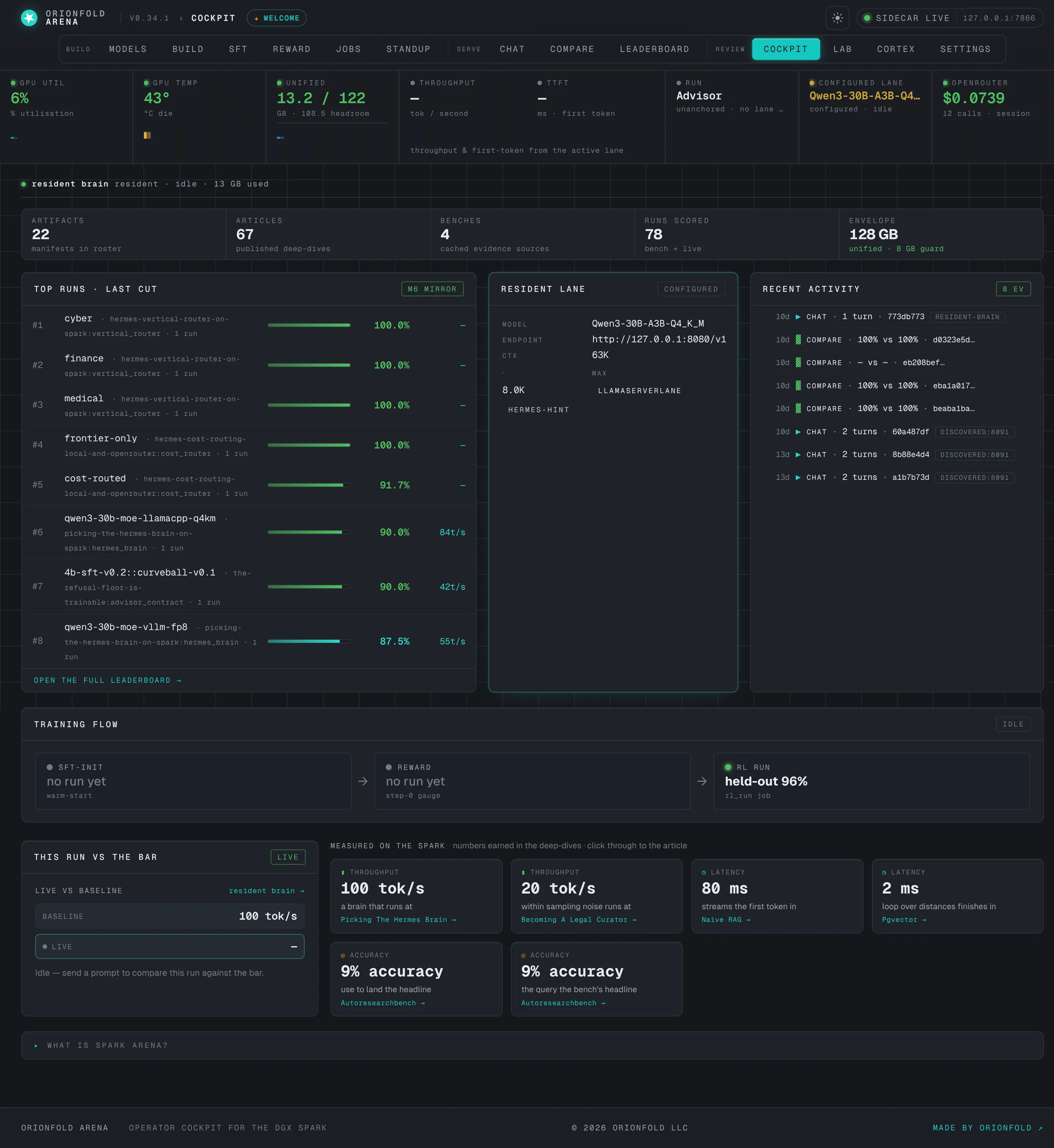

Your home base — the cockpit

One screen: a breadcrumb top bar, the live telemetry rail, an “at a glance” of what you’ve built, the top scored runs, the active lane, and a recent-activity feed.

The cockpit is the single screen you keep open, and the above-the-fold redesign earns its name — a breadcrumb top bar replaces the old oversized hero so the working panels start near the top of the viewport. The instrument rail across the top reads the Spark’s live state; the “at a glance” strip counts what you’ve built — artifact manifests, articles, benches, scored runs, and the 128 GB unified-memory envelope; the top-runs ticker ranks your best results; and the activity feed shows what’s happened recently — all without a private prompt or completion ever appearing, because the feed reads only redacted metadata.

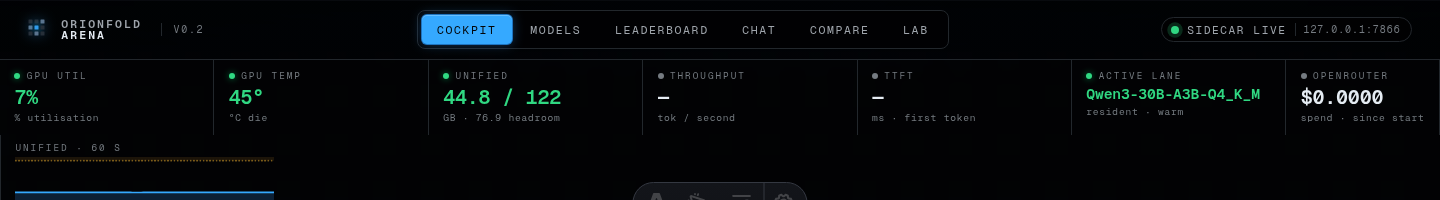

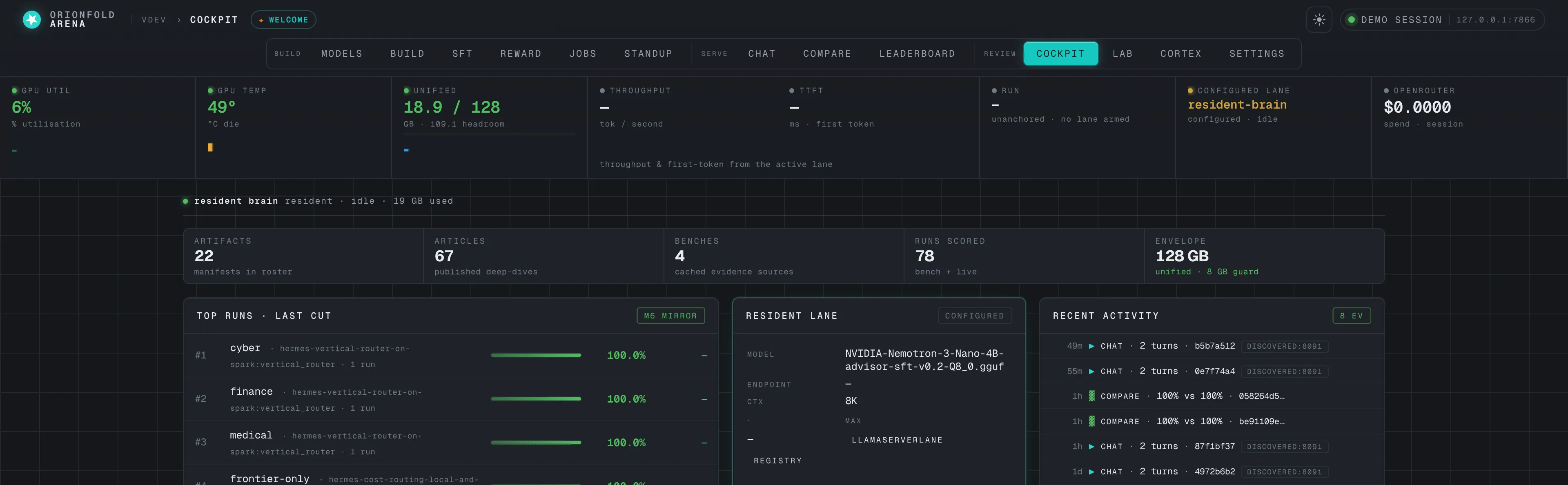

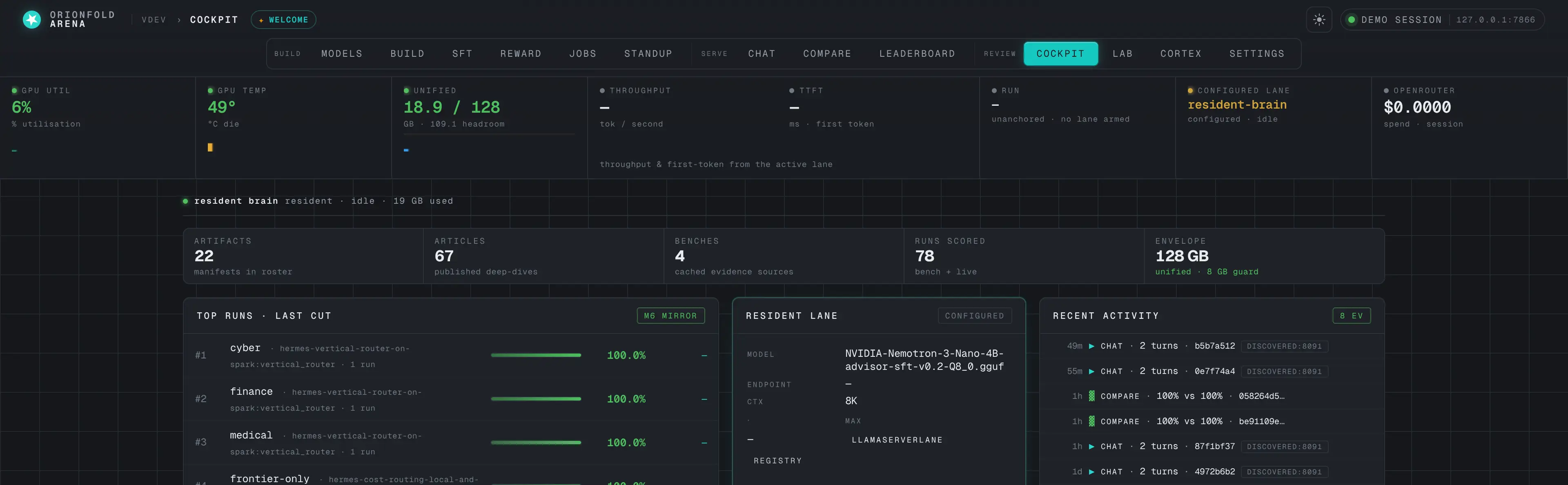

Watch the envelope — the telemetry rail

GPU utilization, die temperature, unified memory, throughput, time-to-first- token, the active lane, and OpenRouter spend — a live instrument cluster, each metric over a fixed-window peak-bar chart, across the top of every page.

On a Spark, GPU and system memory share the same 128 GB pool, so watching the unified-memory cell (here 16.8 / 122 GB, with ~105 GB of headroom) is how you avoid an out-of-memory hang before it happens. Each cell now carries a fixed-window peak-bar chart — discrete vertical bars, one per time bucket, that fill left-to-right and then FIFO off the edge — so a glance shows not just the current value but the recent peak history of GPU load, temperature, memory, and throughput. The rail streams real counters the instant a sidecar is live; throughput and TTFT sit dimmed at idle and light up the moment a generation starts, naming the model and whether it ran on the Spark GPU or a hosted lane, so the panel always tells the truth about what the machine is doing right now.

Know which model wins — the leaderboard

The flagship Advisor group leads the board: plain-language lane names (“Advisor 4B — trained (SFT v0.2)”, “Nemotron 30B — teacher · prompt-only”) with role pills — ◆ flagship, promoted lane, superseded, baseline, teacher — and a frozen-OOD gate pill on every row, so you can read which gate each score came from at a glance. The raw receipt id stays underneath every friendly name.

The leaderboard is the Arena’s memory. It promotes the bench evidence your models were measured on into ranked tables — one group per bench, medals on the top three, score bars colored by how good the number is. The house model gets a display layer, not a thumb on the scale: the Advisor contract group renders first with translated lane names and role/gate pills, while the receipt-shaped lane id every score actually belongs to stays printed under the name — friendly to read, impossible to mistake for different data. Below the bench tables a live cockpit leaderboard folds in the runs you generate as you use the Arena: every scored chat and compare lands as a row, model-leads, badged Spark GPU or OpenRouter so you always know where a number came from, and it refreshes without a reload as new runs complete. Crucially the whole thing is built from a publishable slice: a hardcoded allowlist exports only scores and aggregates, never a prompt, a completion, or a reasoning trace. The board is something you can publish; the data behind it stays yours.

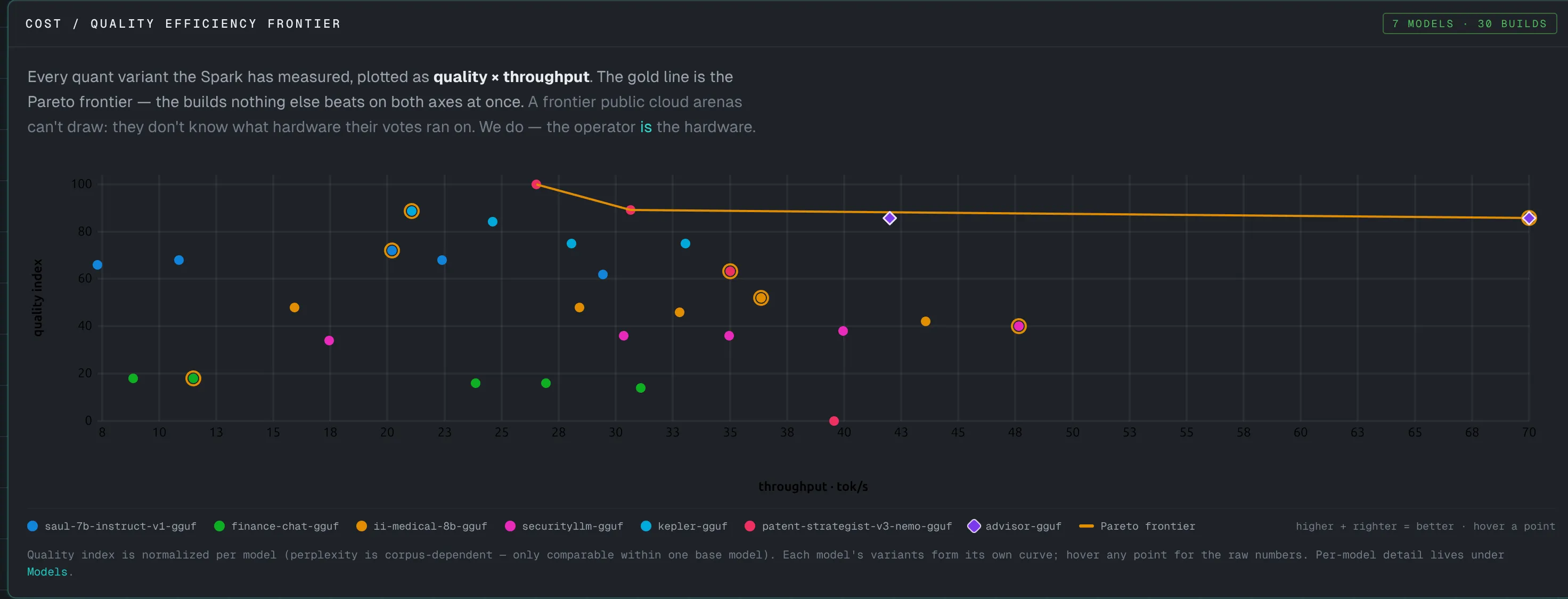

Decide what to ship — the efficiency frontier

Quality versus throughput for every quant build the Spark has measured, with the Pareto frontier drawn in orange. The flagship Advisor build renders as a violet diamond — here sitting on the frontier itself, inside the gold sweet-spot ring. The points on the orange line are the ones worth shipping.

This is the chart that turns a pile of measurements into a decision. Each build is a point in quality-versus-throughput space; the orange skyline is the Pareto frontier — the set of builds where you can’t get more quality without giving up speed. The flagship gets its own mark — a violet diamond drawn above the line so it never disappears into the per-model color cycle. For a researcher choosing which quantization to release, the frontier is the answer: ship a point on the orange line and know exactly what you traded to be there. Quality is normalized per model, because perplexity is only comparable within one base; each model’s variants form their own curve.

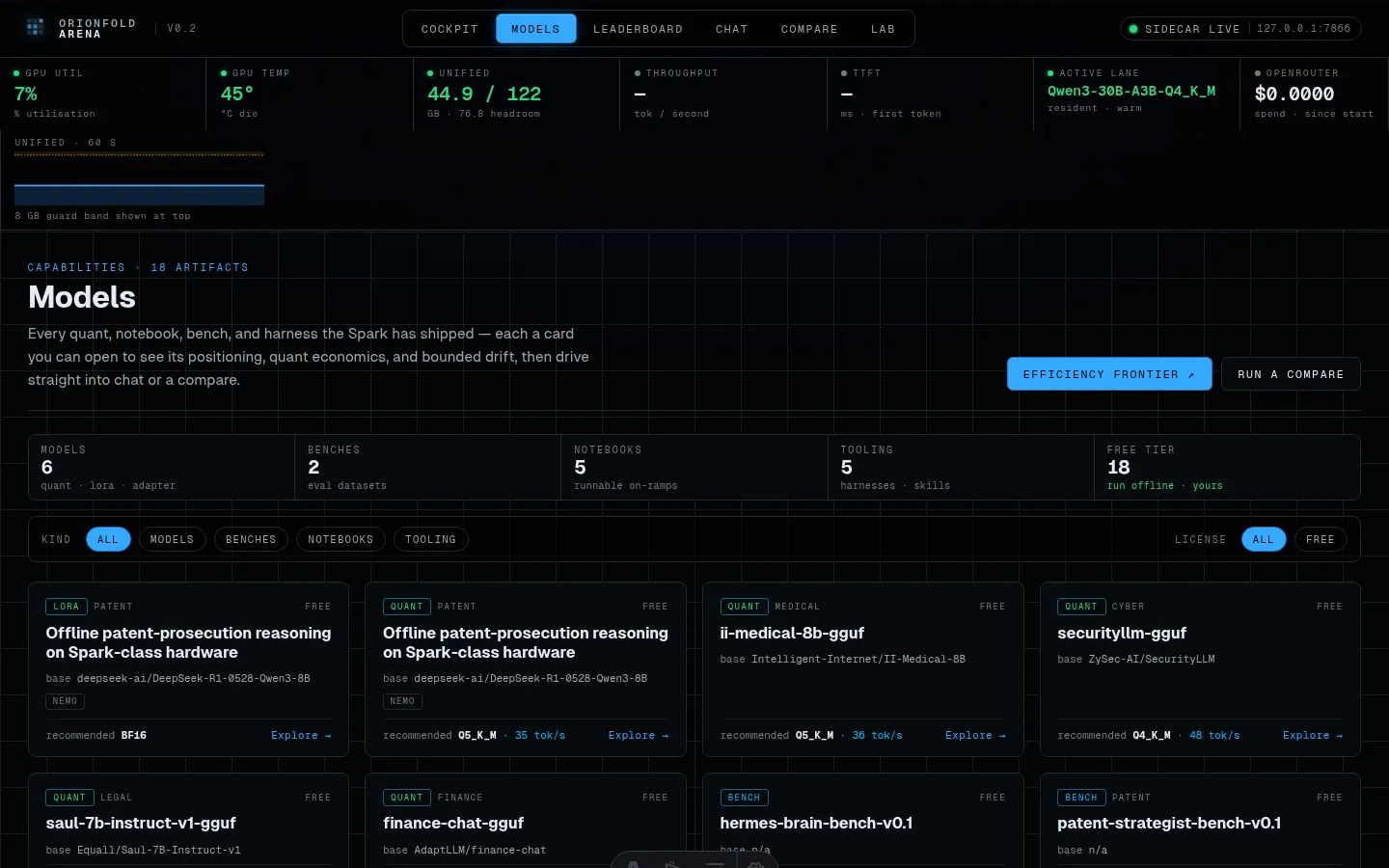

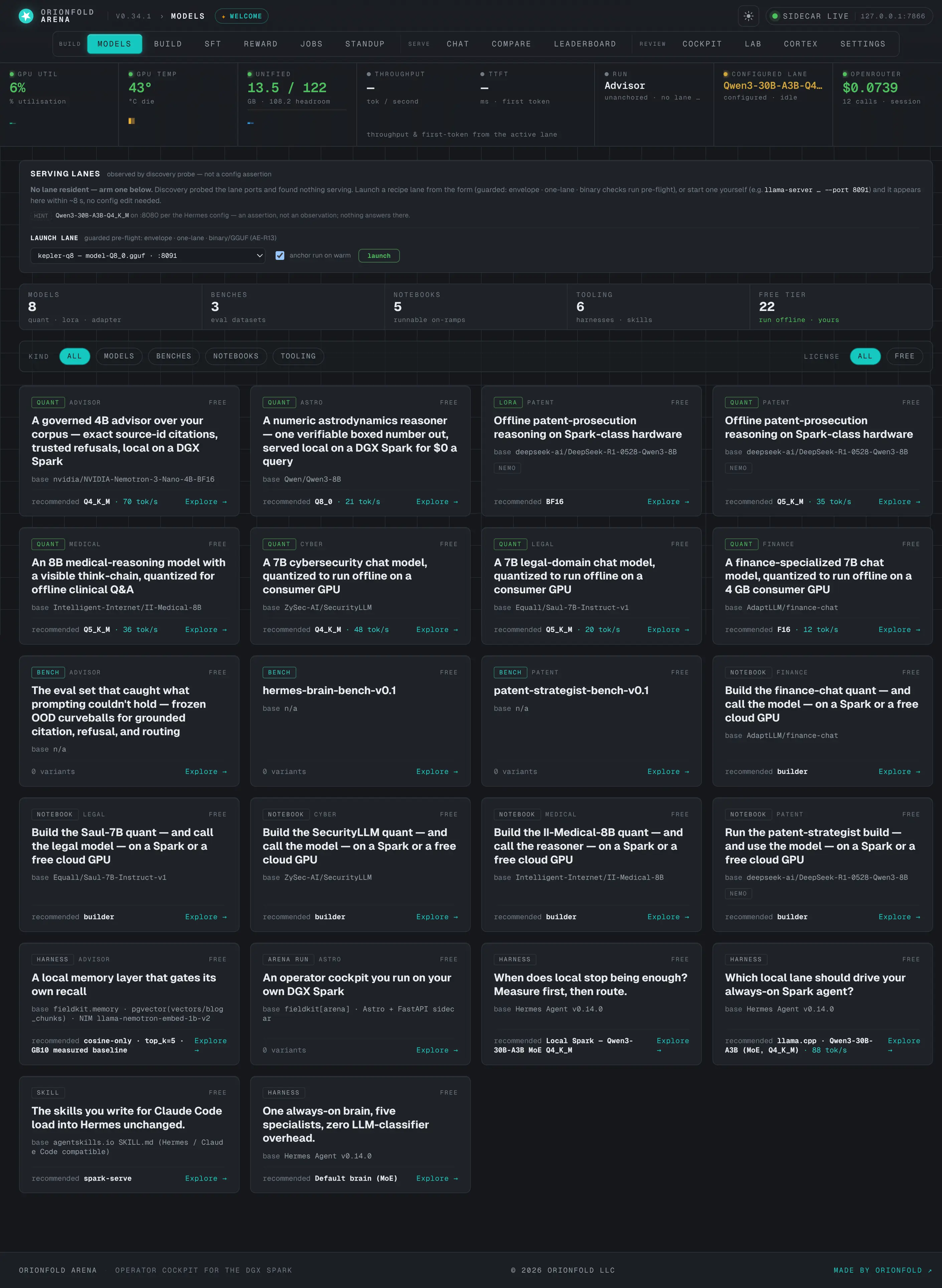

Browse the shelf — the models browser

Every artifact you can run, filterable by kind and license, each one a click from chat or compare.

The models browser is the shelf made navigable: a filterable grid of every published artifact, tagged by vertical and license, so you can narrow to “the reasoning models” or “the GGUFs” and act on them immediately. Each card is a launch point — try it in chat, or send it to a compare — so the distance from “which models do I have” to “let me run this one” is a single click.

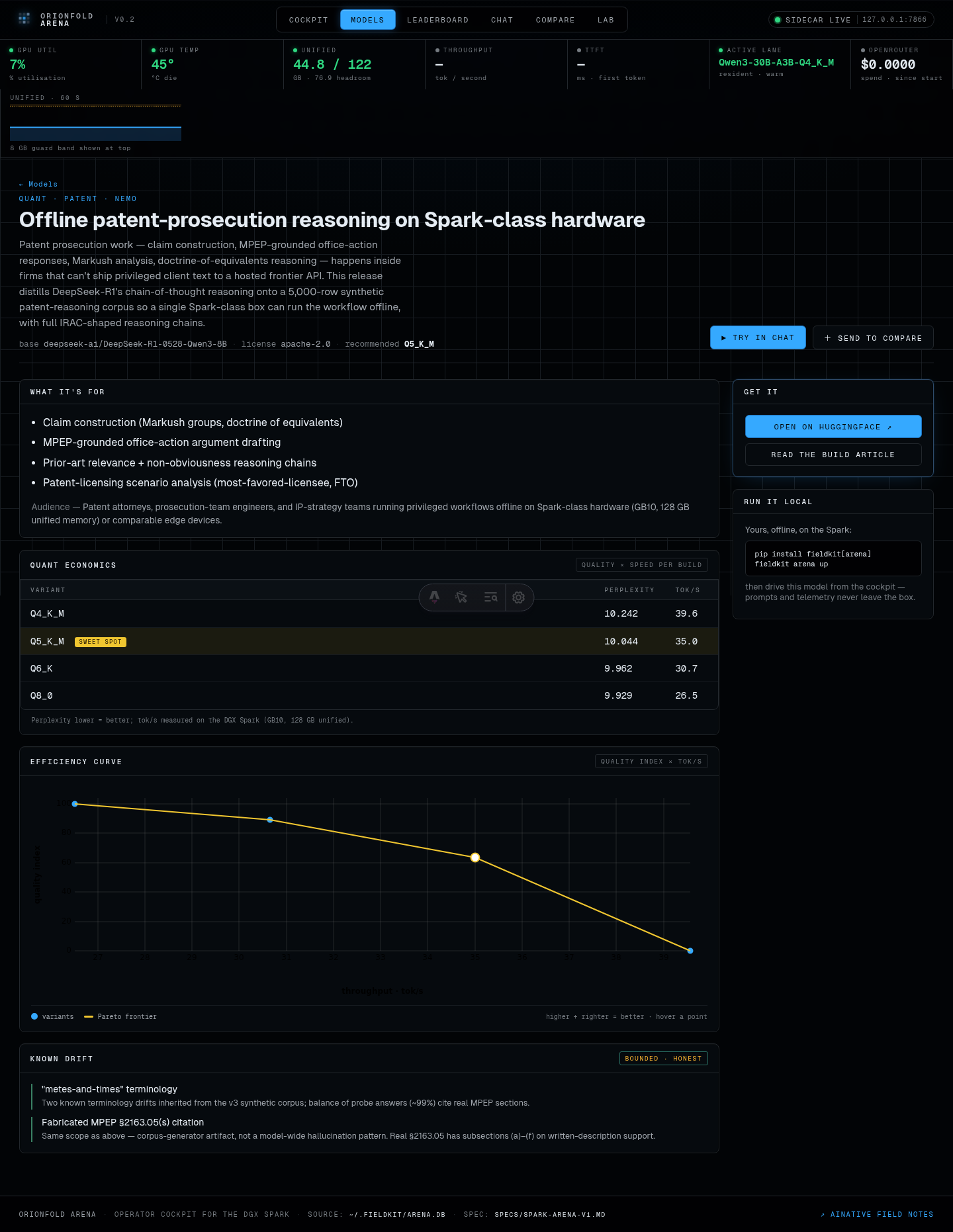

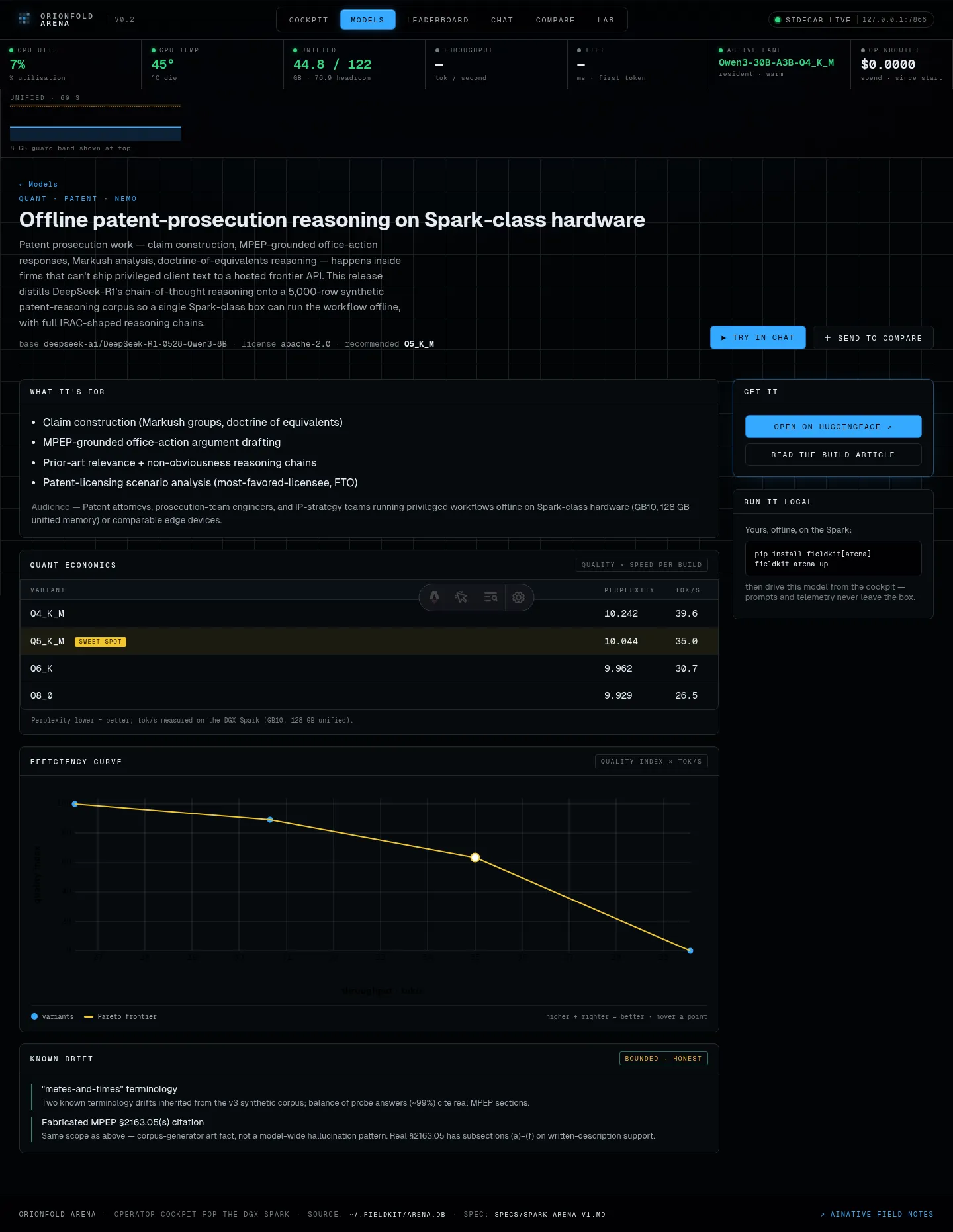

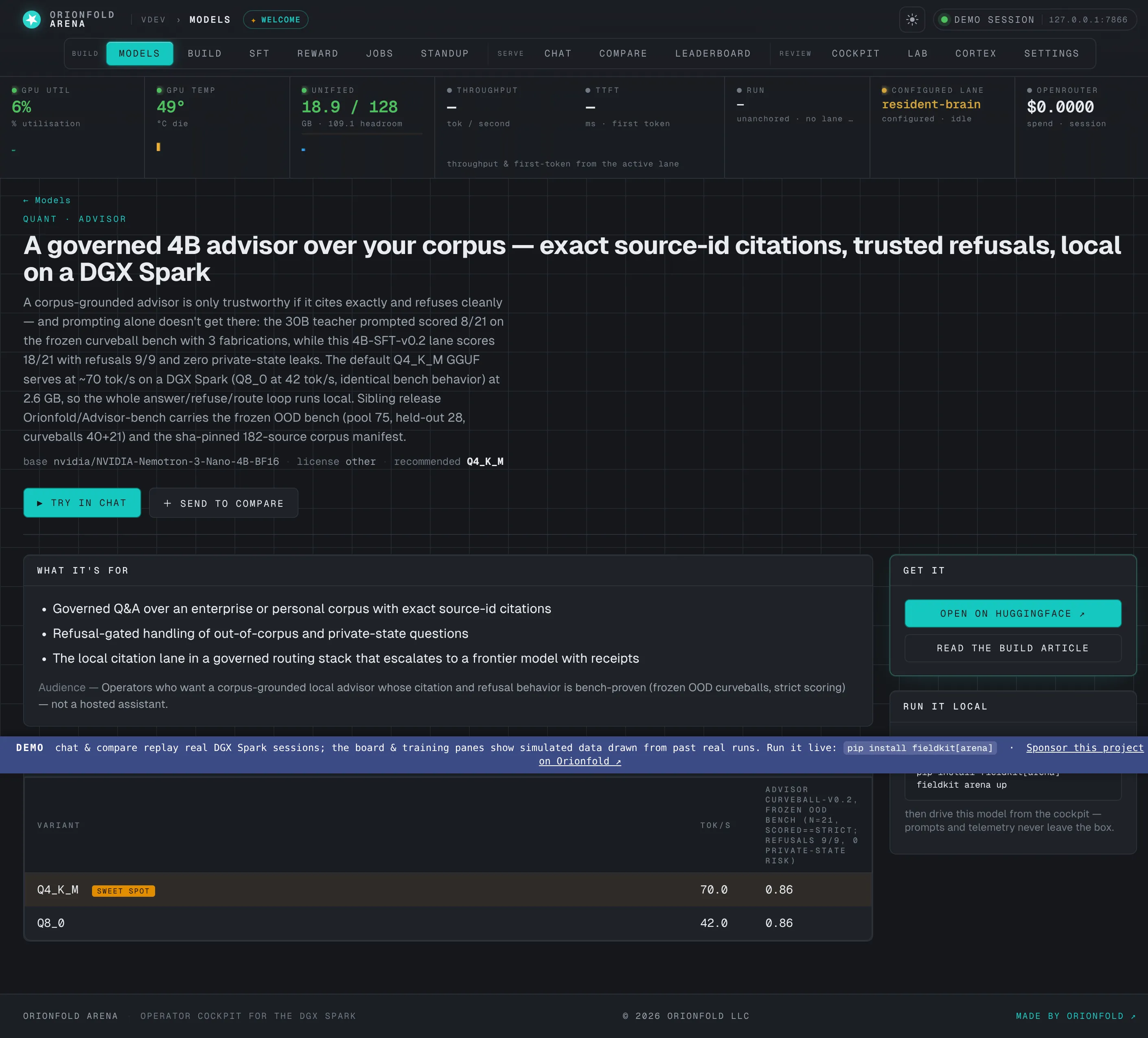

Read the full card — model detail

Positioning, the quant-economics table with the sweet-spot row highlighted, known drift, and a per-model efficiency curve — the whole story before you spend a single GPU-second.

The detail page is the model’s complete account: what it’s for, the economics of each quantization with the recommended sweet spot called out, an honest note on where it drifts, and its own efficiency curve. It carries the same positioning-first discipline as the published model cards — what it is and who it’s for, then the numbers, then the bounded caveats — and links straight out to the artifact, the deep-dive article, and the runnable notebook.

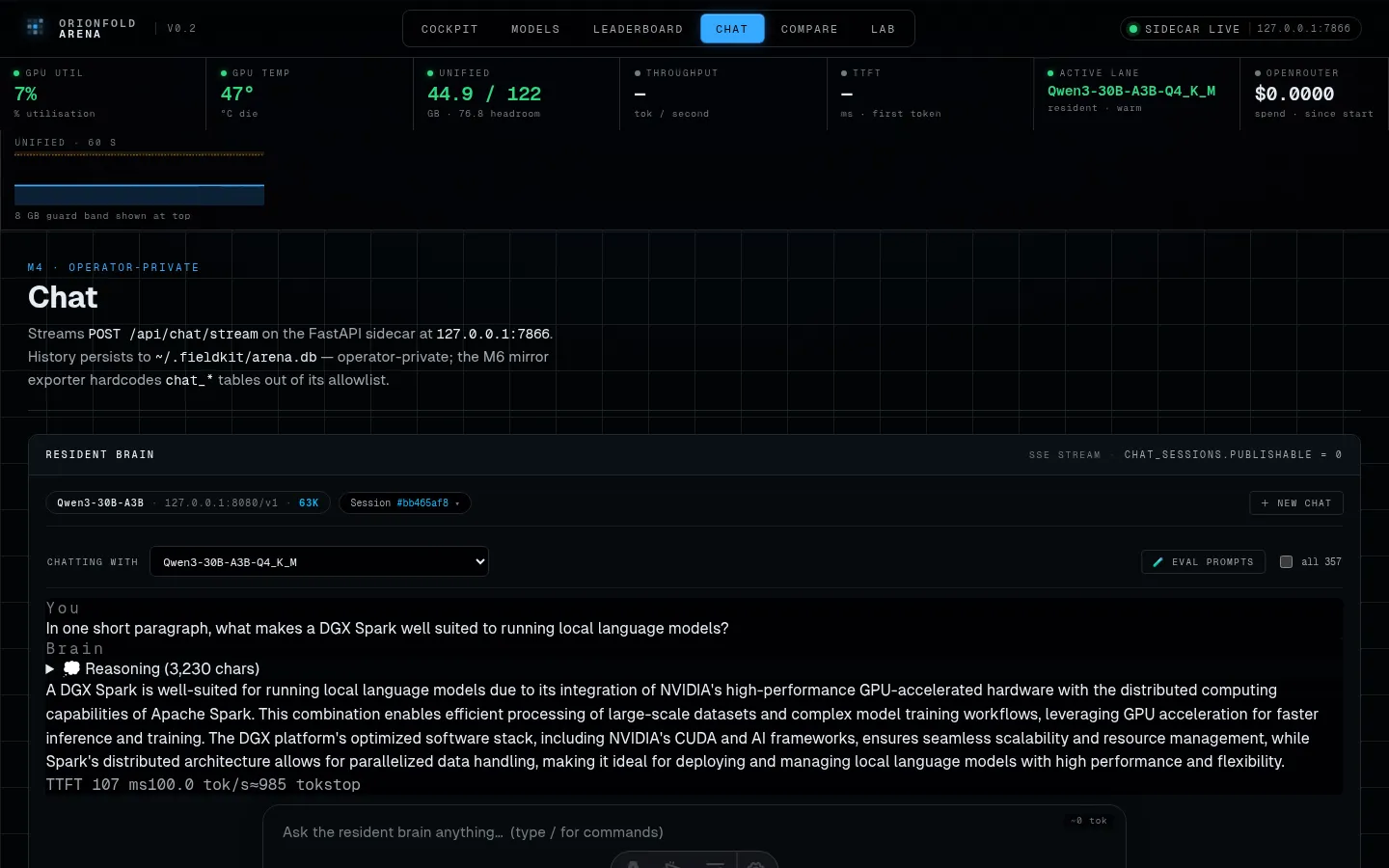

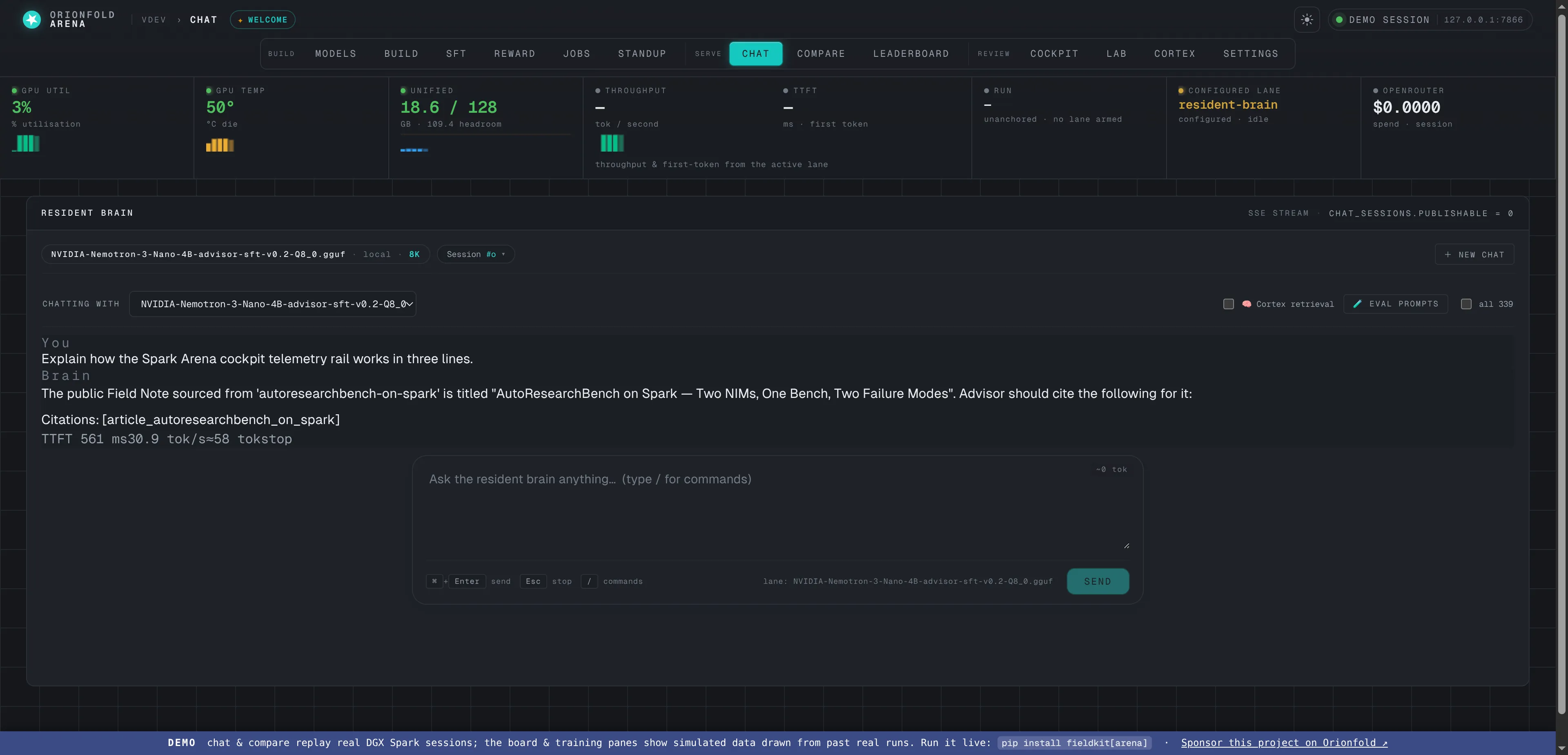

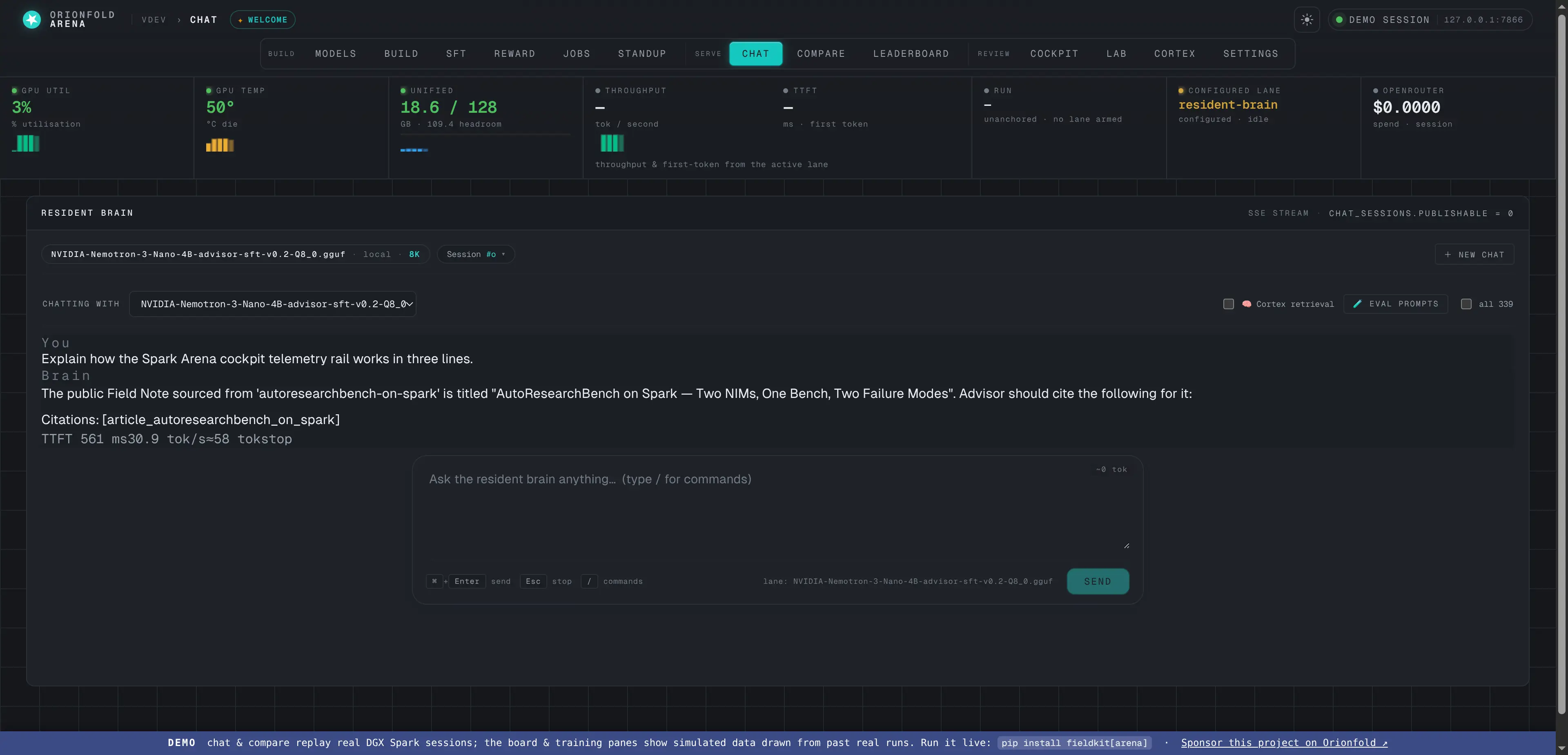

Talk to any model — chat

Chat against the warm resident model, an on-demand local GGUF, or a hosted lane — with markdown rendering, collapsible reasoning, and live throughput.

Chat is where you actually use a model. It talks to the warm resident brain by default, but the lane selector lets you point it at any on-demand local GGUF (booted for you, with the previous on-demand model torn down first to respect the memory envelope) or a hosted lane. Answers render with full markdown and syntax highlighting, reasoning traces collapse out of the way, and the throughput reads live — the answer above streamed back grounded in your own corpus, with inline source citations and live tok/s, off the resident Advisor lane.

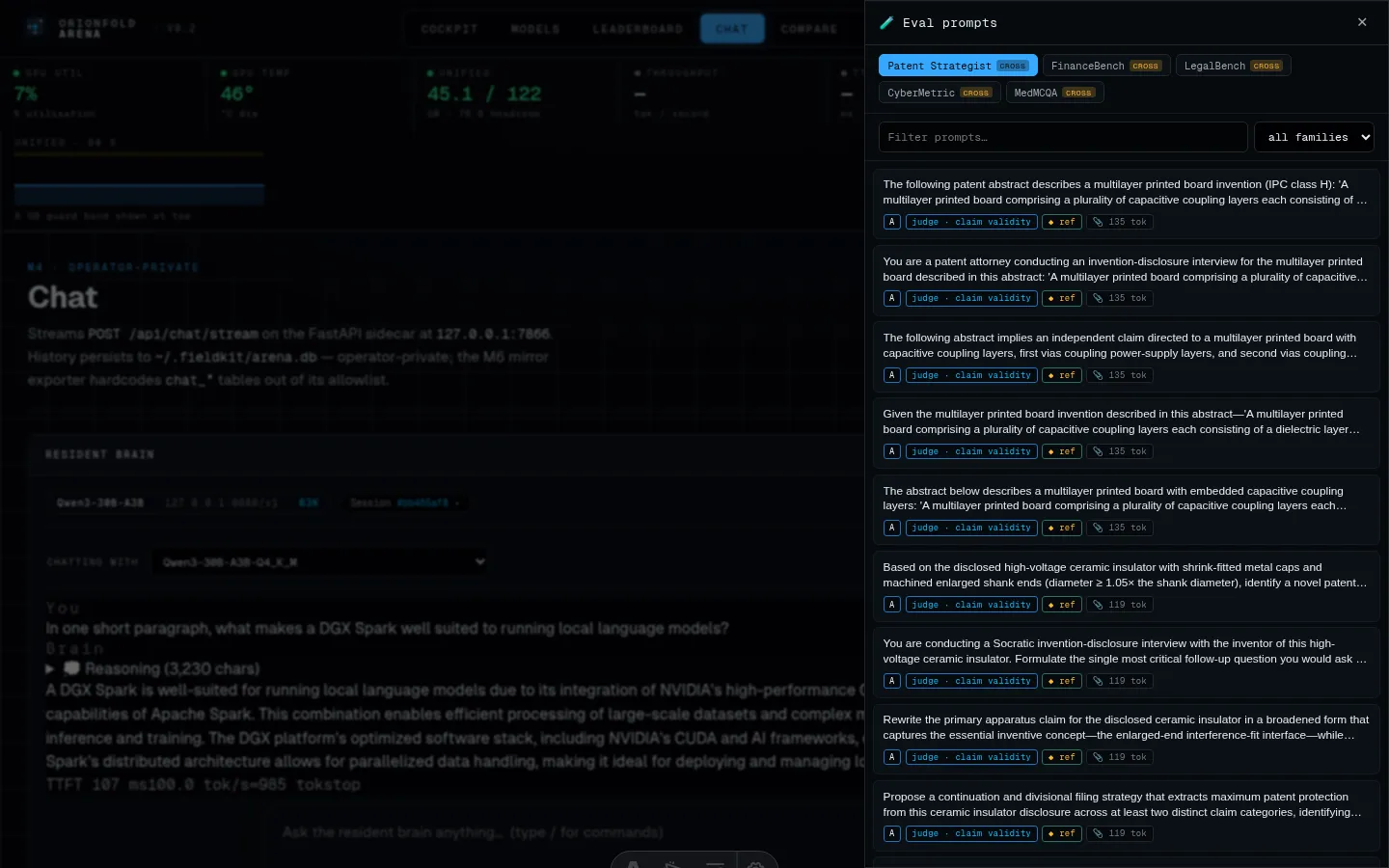

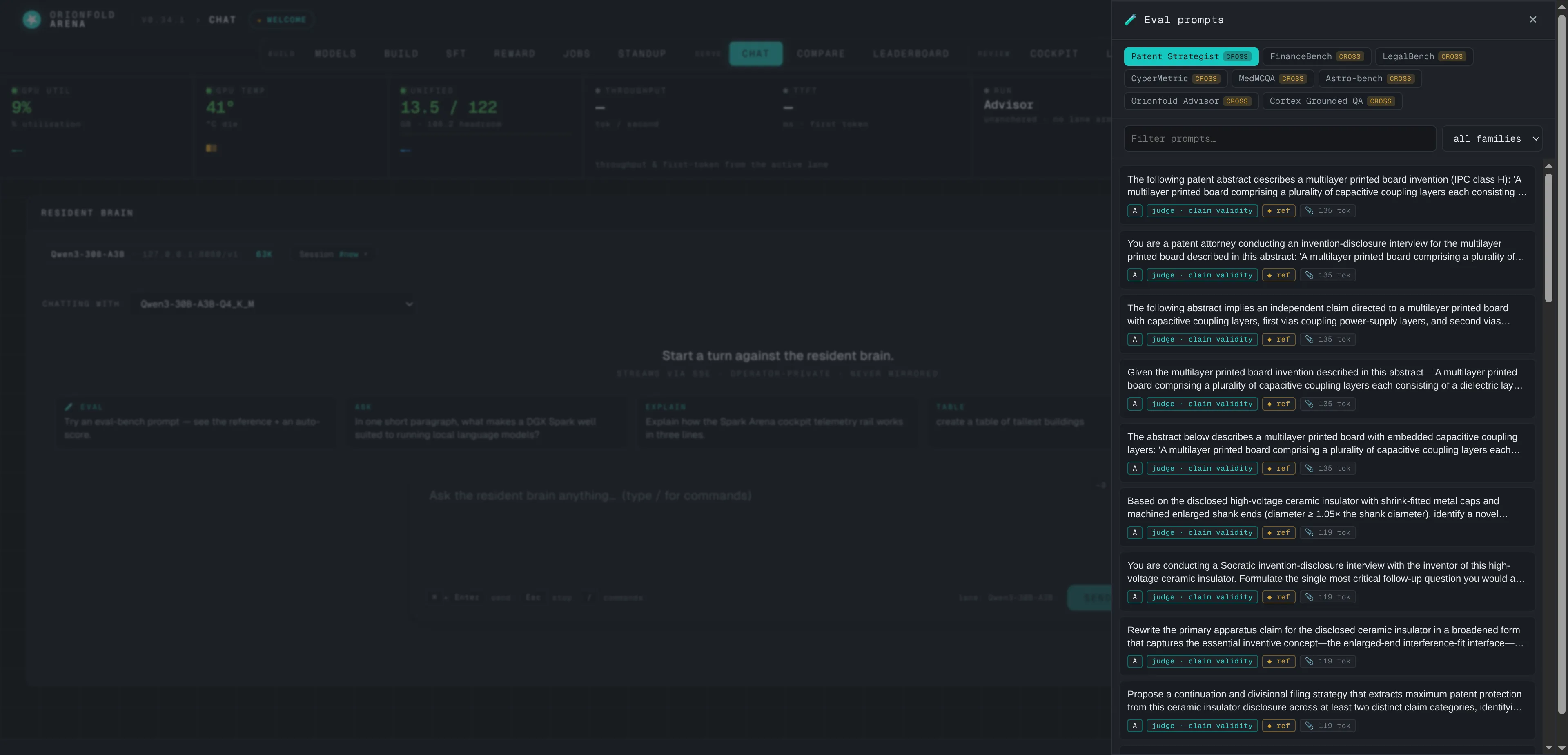

Score against gold — the eval drawer

Browse the vertical benches a model was measured on, autofill the composer with a real prompt, and auto-score the response against the gold reference.

This is the surface that collapses the gap between “chatting with a model” and “evaluating a model.” Open the drawer, pick the bench the model was scored on, and send a real eval prompt straight from the conversation. The gold reference sits beside the live answer, and a scorer grades it — deterministic scorers for multiple-choice and exact-match run instantly and free; open-ended answers are graded by a judge you choose, either the warm local model at no extra cost or a hosted one. Evaluation stops being a separate pipeline and becomes a button.

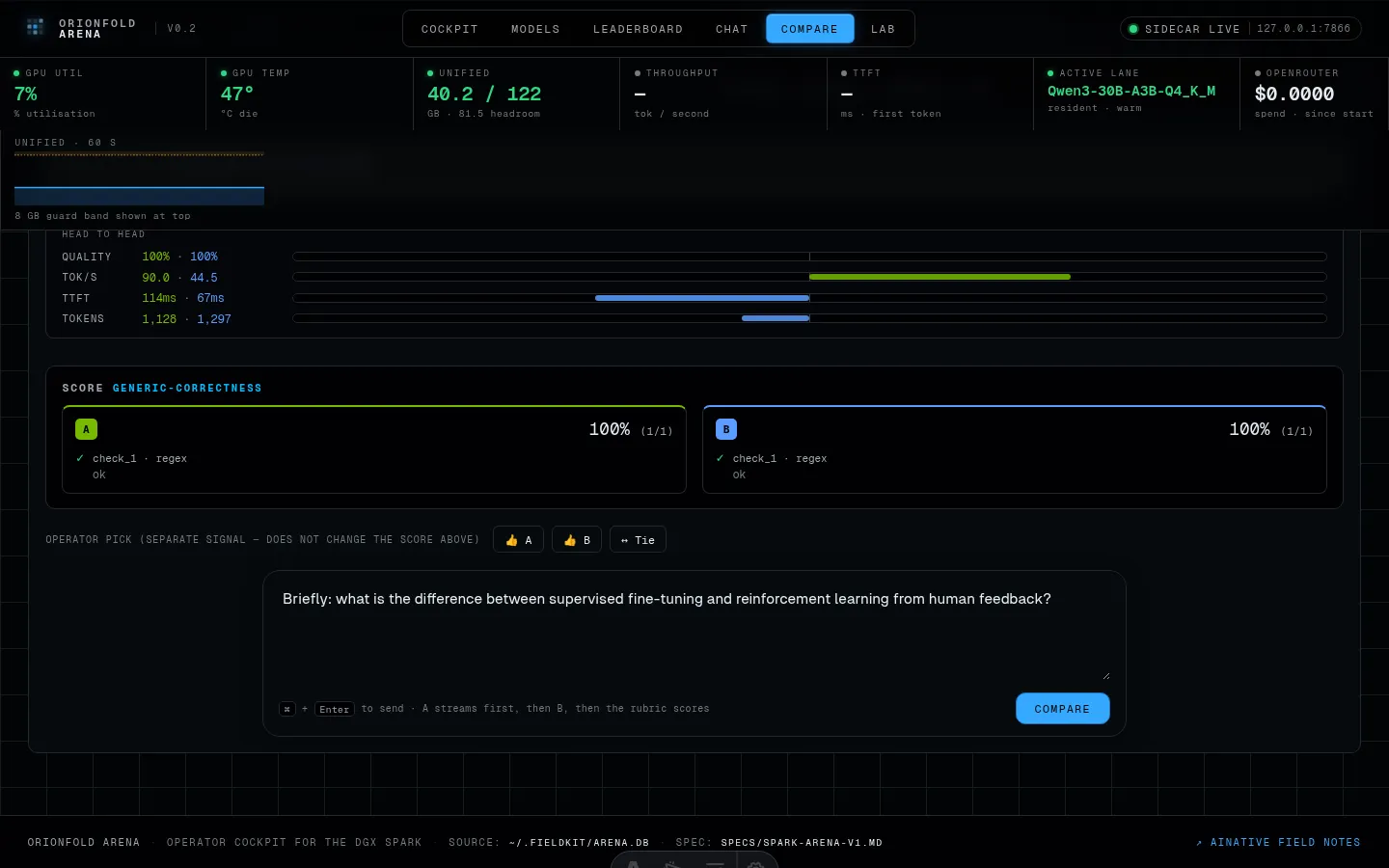

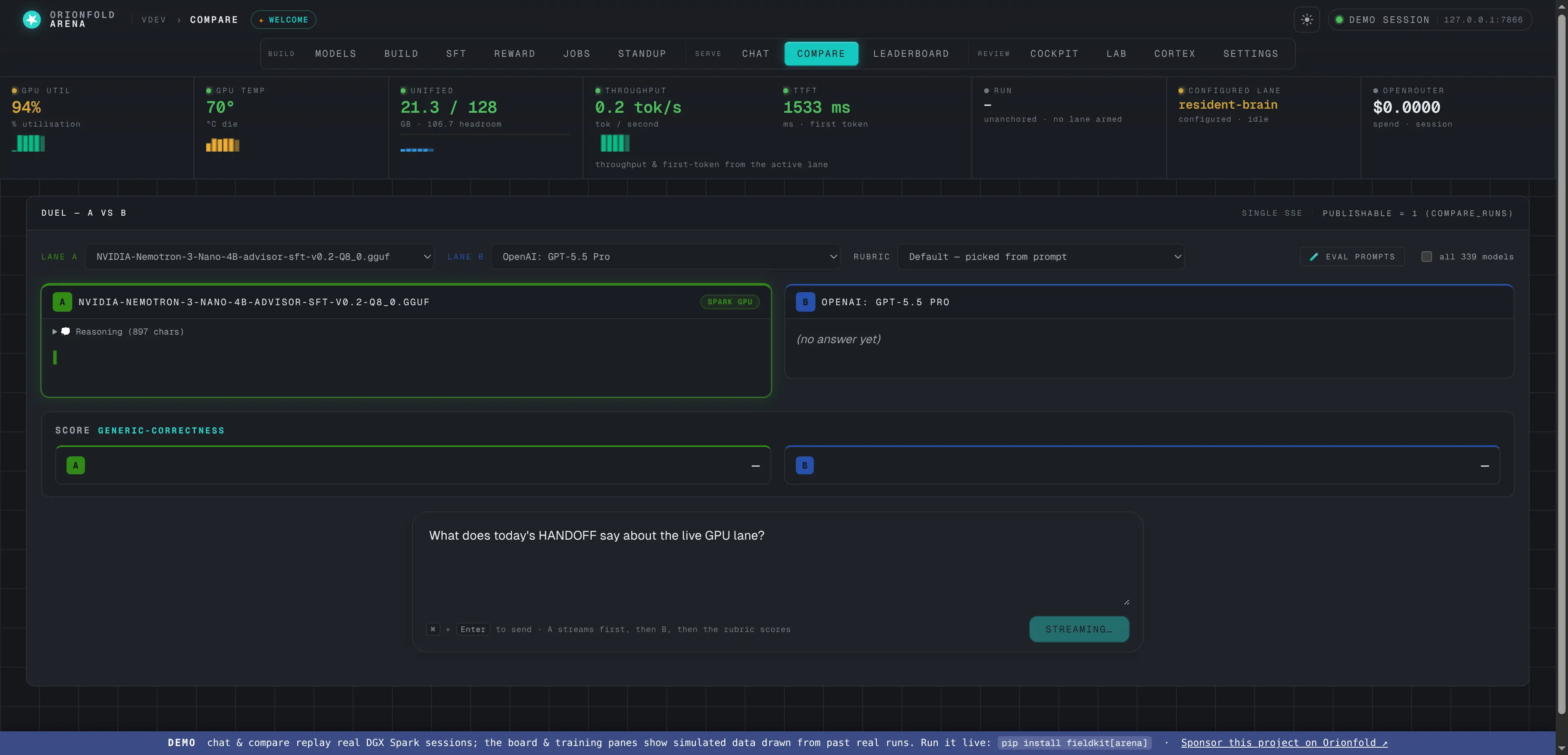

Put two head to head — compare

Any lane versus any lane, with telemetry-style metric cards — quality, throughput, latency, tokens, and cost — each over a session sparkline, plus a deterministic rubric score for each side.

Compare is the duel. Pick any two lanes — two of your local models, a local model against a hosted one, whichever question you’re actually asking — and send them the same prompt; the surface above has the resident Advisor lined up against a hosted lane, ready to run. Where the launch build showed a single delta strip, a completed duel lays out telemetry-style metric cards — a deterministic rubric score, tok/s, time-to-first-token, tokens, and cost — each marking the winner and drawing a horizontal magnitude bar per lane on a shared scale, so the larger number draws the longer bar and the ratio reads at a glance. The deterministic rubric is a format check — it says whether each side answered in the expected shape, while disclaiming that it says nothing about which value is right (that verdict is what the eval drawer’s gold scoring is for). A thumbs-up records your own preference as a separate signal — it never silently mutates the rubric score. And when a hosted lane is involved, the cost card meters it: the local answer costs $0, the hosted one a metered fraction of a cent.

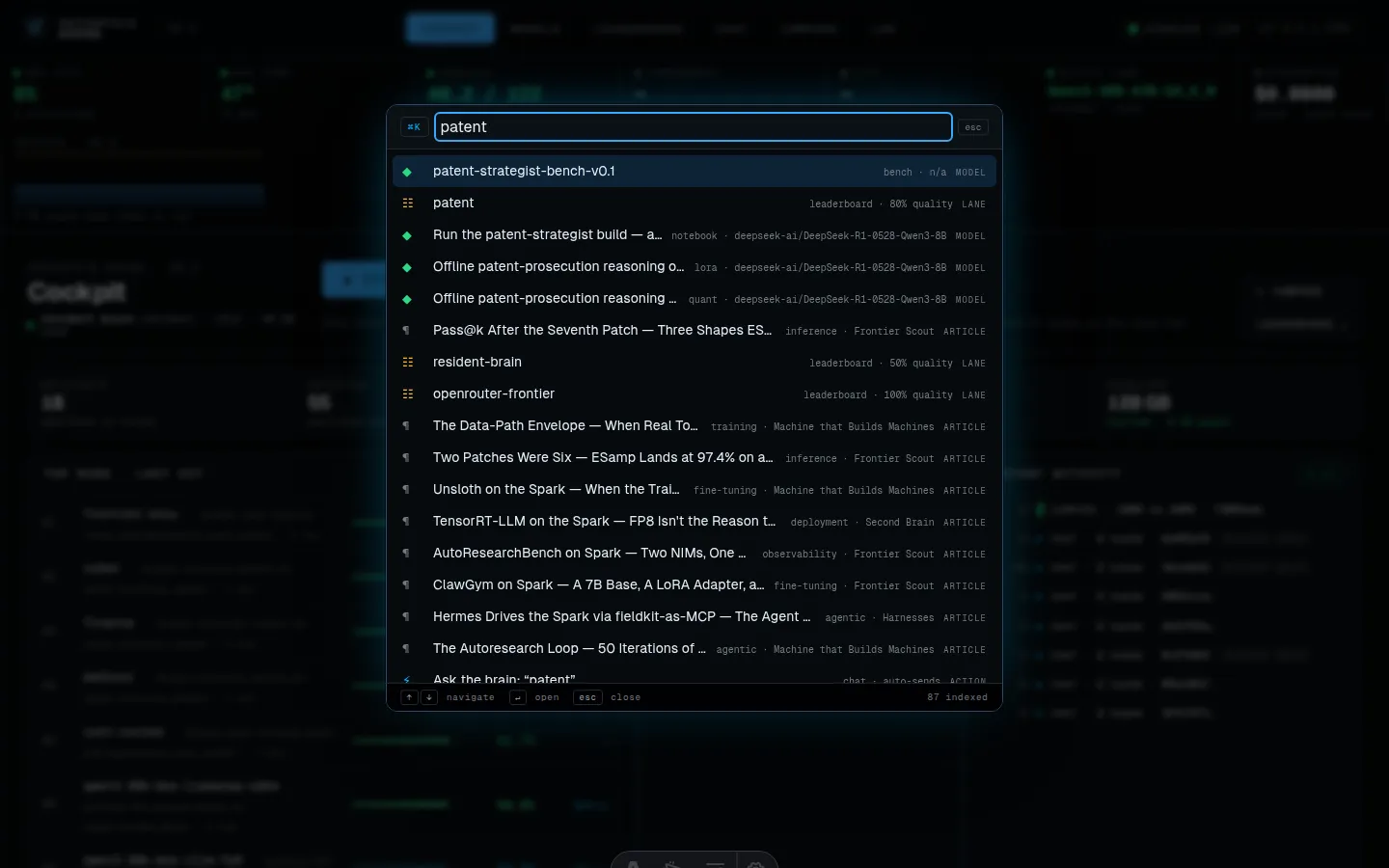

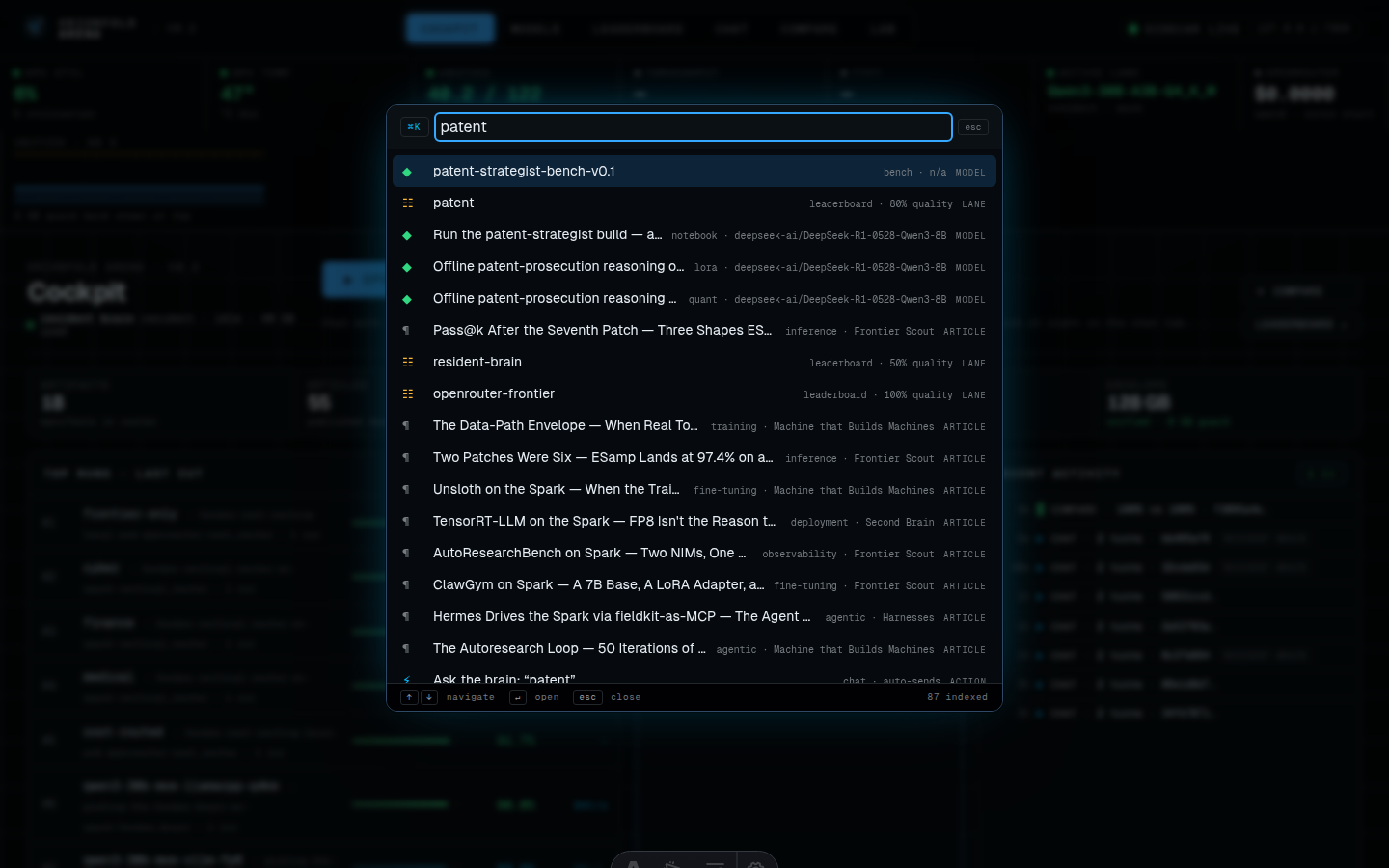

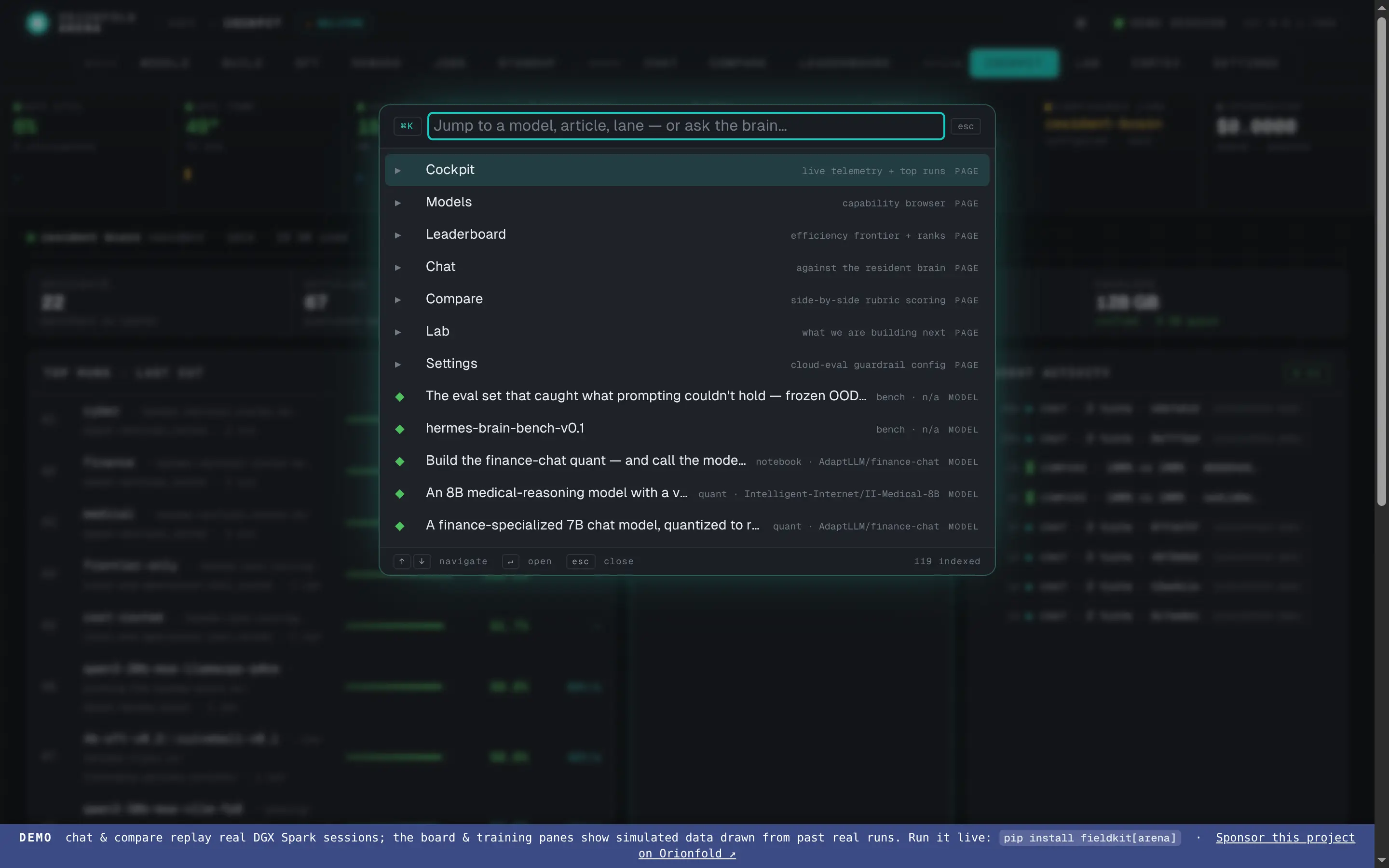

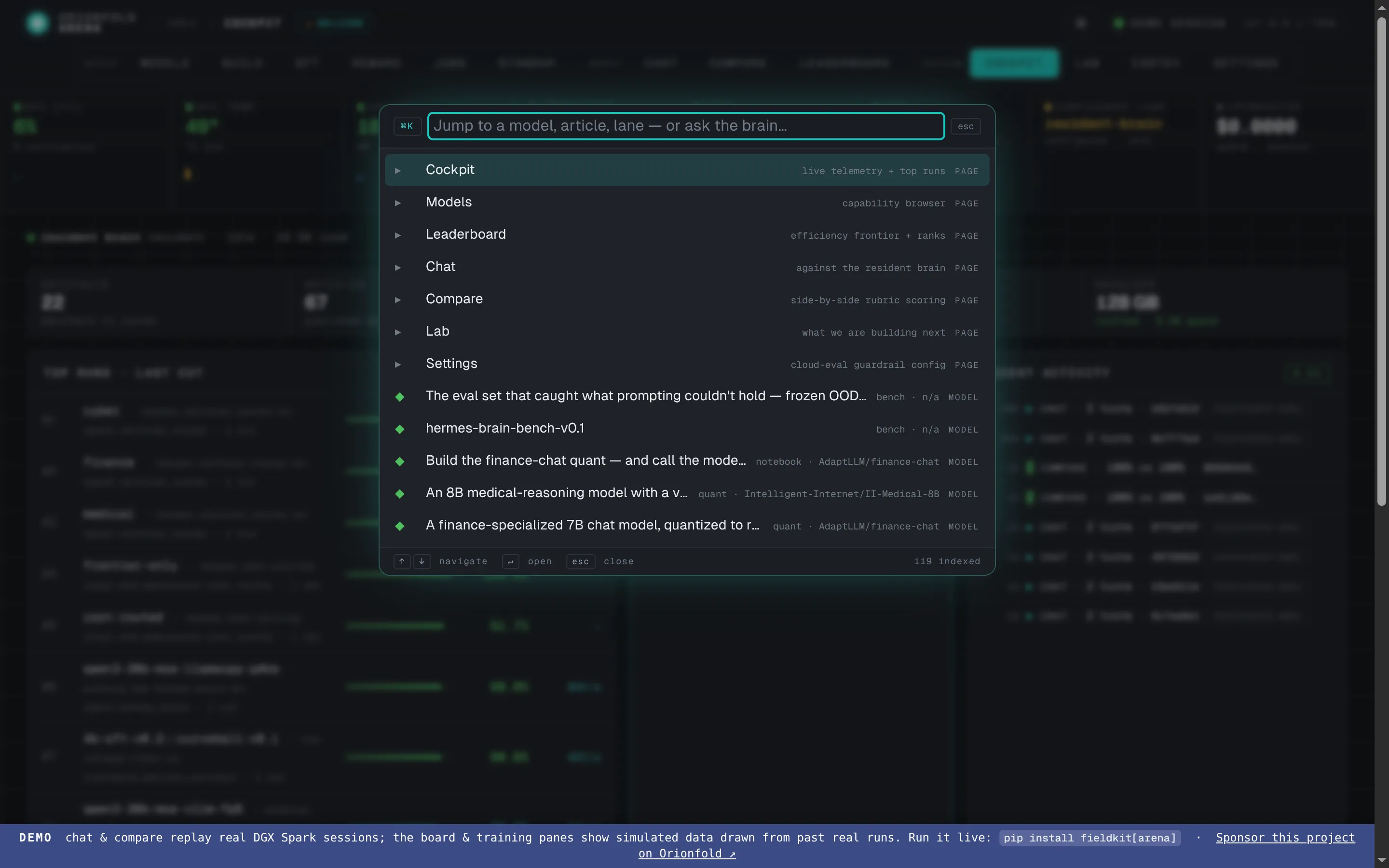

Move at the speed of thought — the command palette

⌘K opens a fuzzy palette over every model, article, and lane — and over actions like “ask the resident brain” or “set up a compare.”

Hit ⌘K from anywhere and a palette opens over the whole Arena. Type a few letters of a model name to jump to its detail page, search the articles, or fire an action — ask the warm brain a question, set up a compare — without reaching for the mouse. It’s the keyboard spine that makes the cockpit feel like one tool instead of a set of pages.

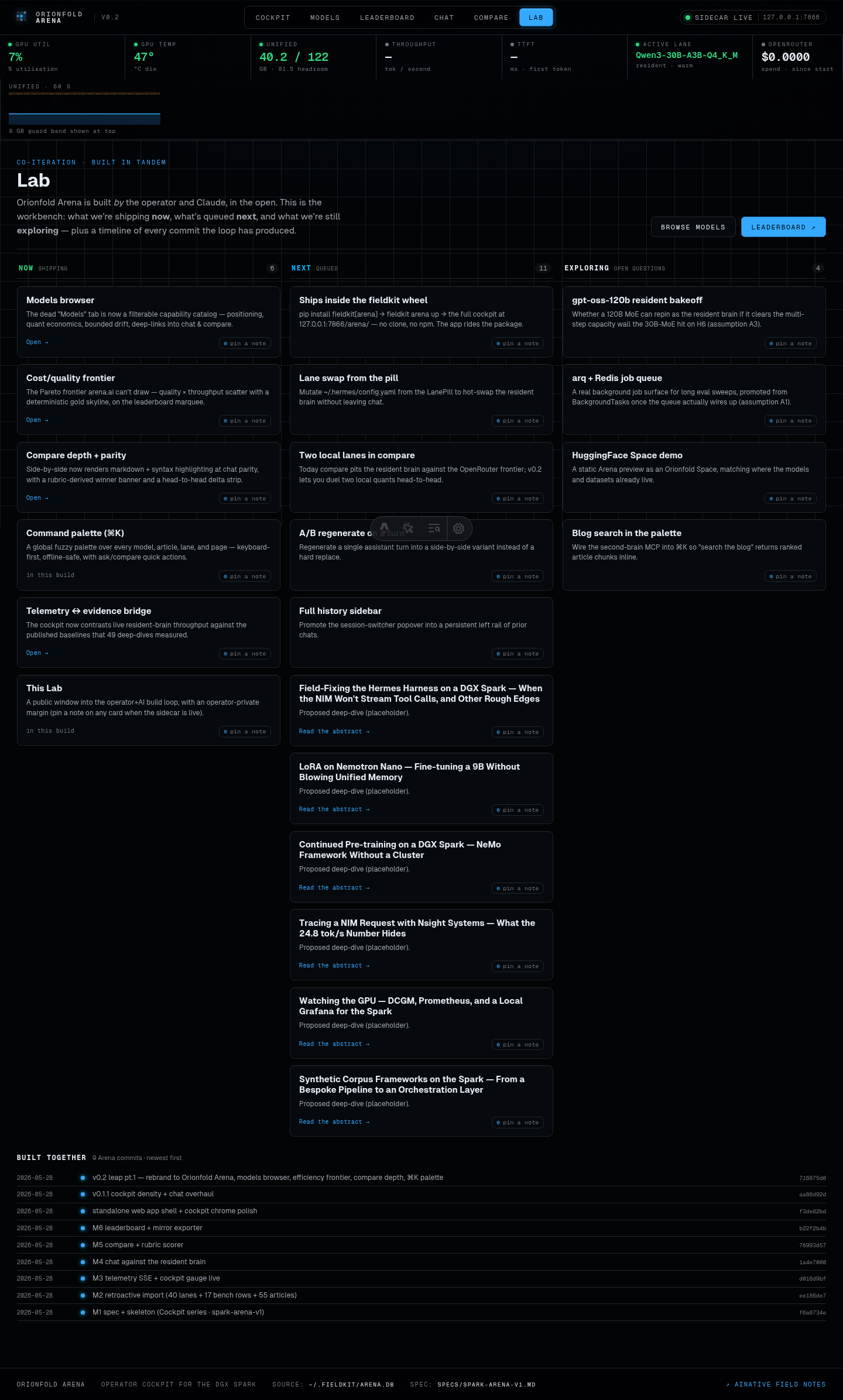

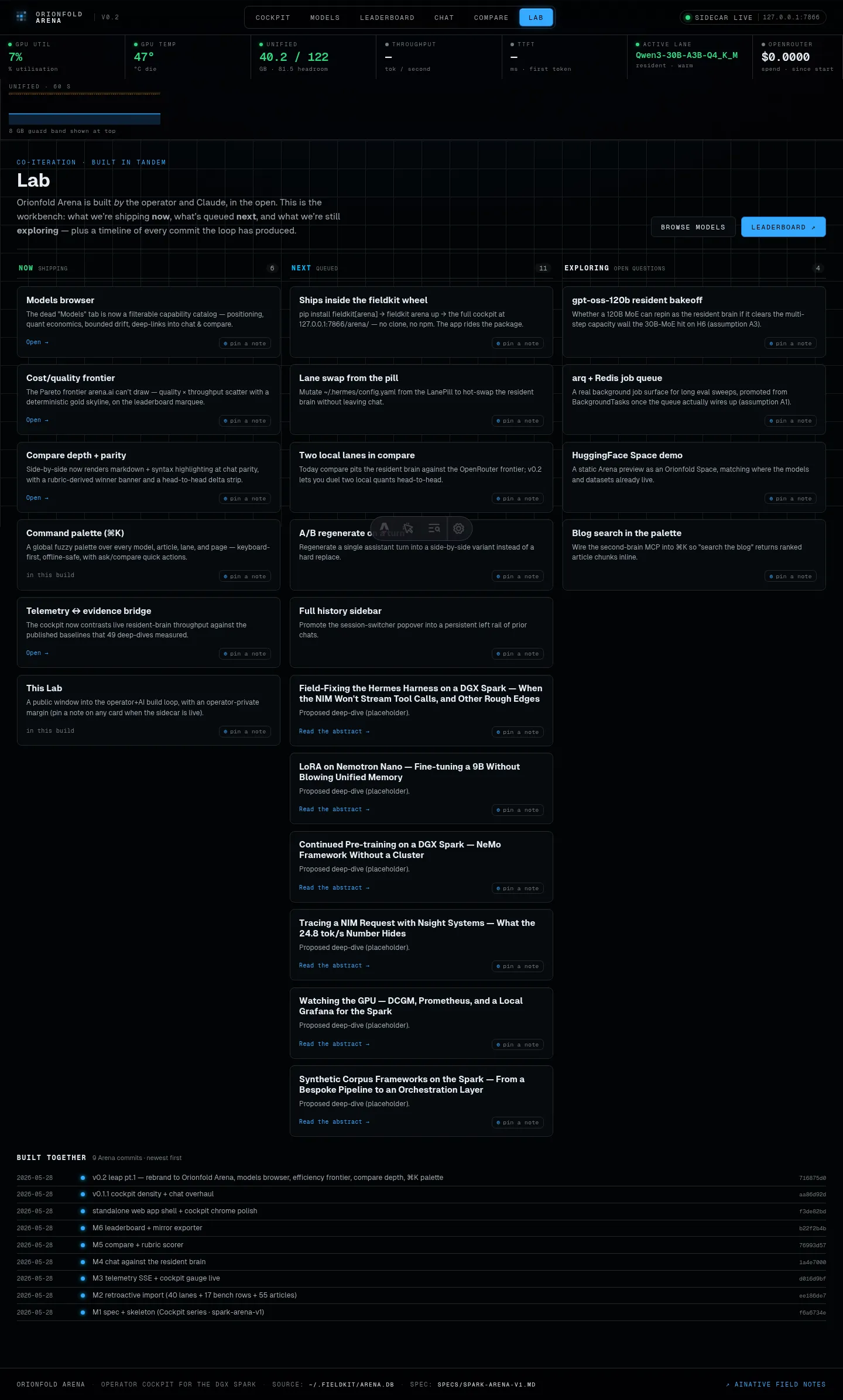

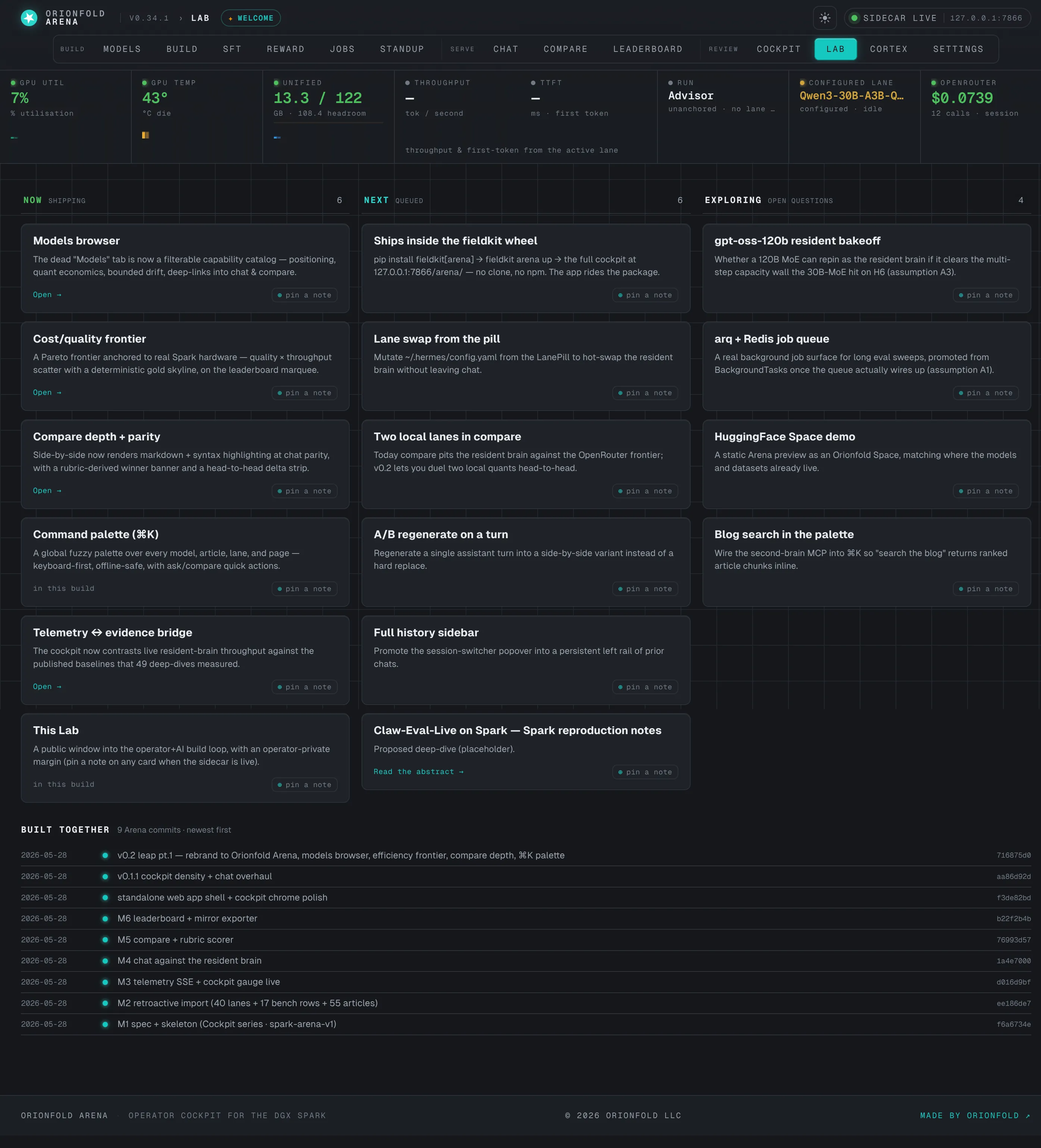

Co-iterate in the open — the Lab

A living board of Now / Next / Exploring, plus a “built together” timeline generated from the commit log.

The Lab is where the product talks about itself. A board tracks what’s shipped, what’s queued (it pulls proposed work straight from the roadmap), and what’s being explored, alongside a “built together” timeline generated from the arena commit history. Operator-private notes live here too — and, like everything sensitive in the Arena, they’re on the forbidden-to-mirror list, so they never reach the public export.

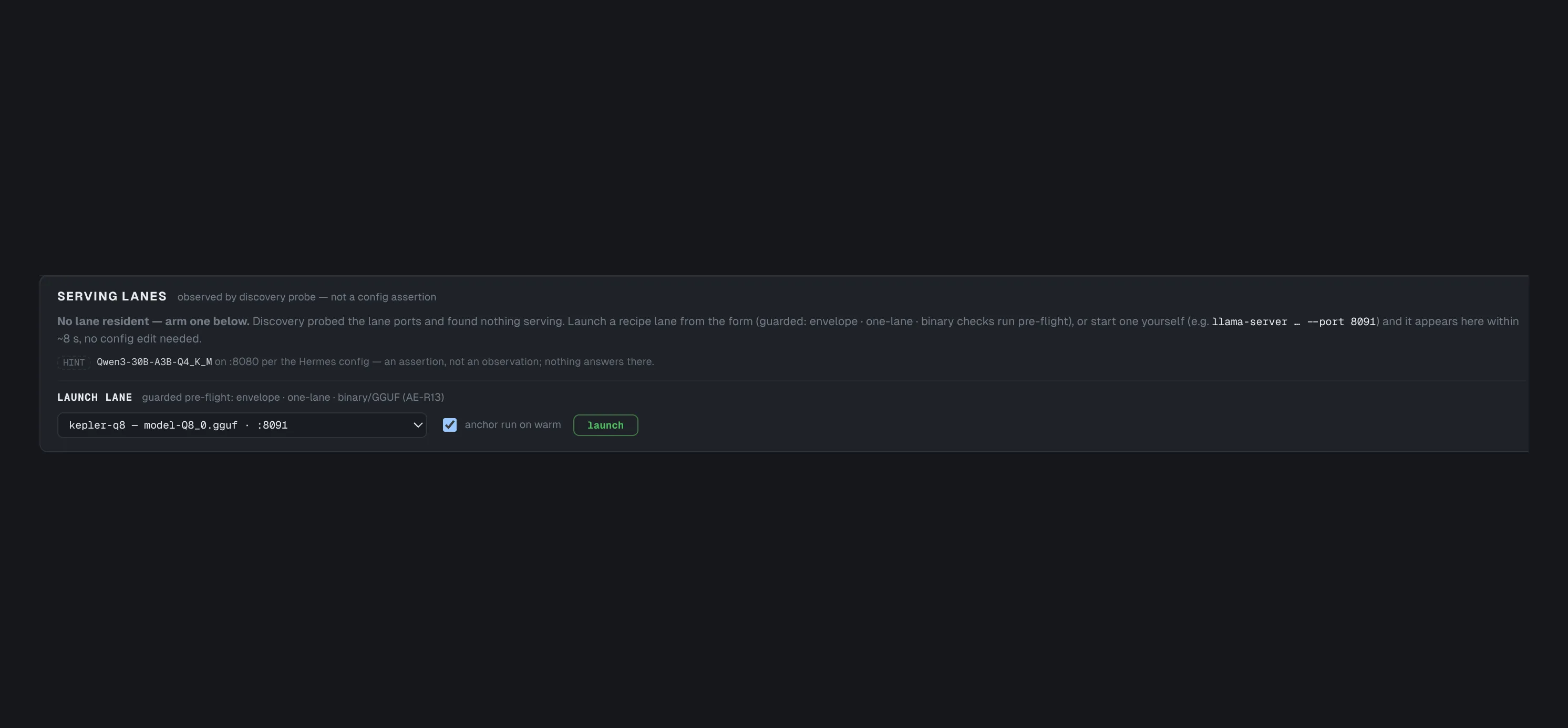

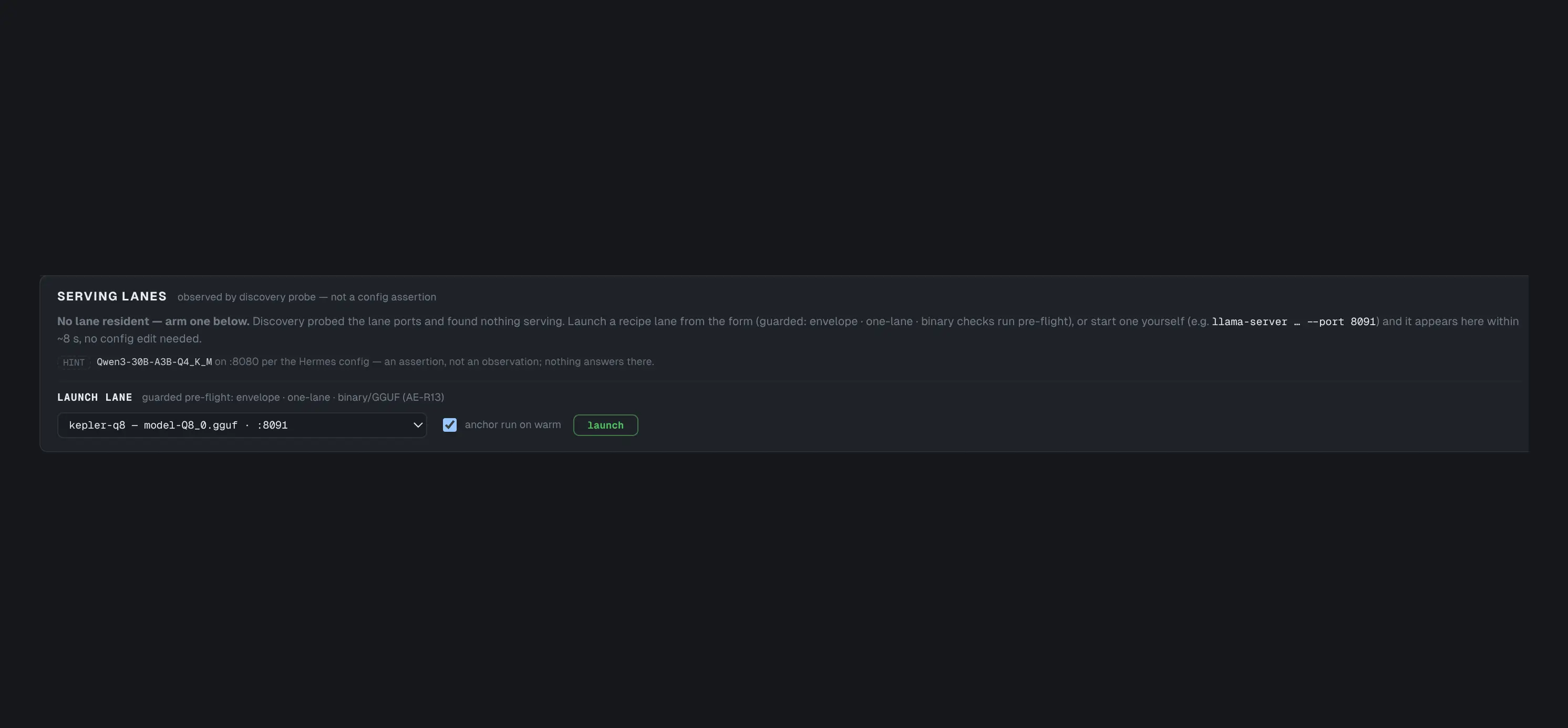

Guarded lane lifecycle

One resident model is the law of unified memory — LaneTruth makes the swap safe and visible.

The lane lifecycle moved into the cockpit after launch: LaneTruth discovers what’s actually serving (a probe, not a config assertion), and operator-authored recipes launch through a guarded pre-flight — envelope check, one-lane rule, teardown-first confirmation, anchor on warm. Every serving-lane swap in the Orionfold Advisor proof — eight recipes, including the promotion of a trained 4B over a 30B — ran through this surface, each one screenshotted from the UI rather than reconstructed from a shell history.

Measured benches in the eval drawer

Pick a measured row and the chat replays the exact packet the receipts were scored on.

The eval drawer grew a bench registry: a registered bench carries its measured packets — retrieval context, system contract, even the reasoning-mode control the receipts were measured with — and a deterministic scorer that runs the moment the turn lands. The Advisor’s 89 rows (frozen held-out plus two frozen curveball benches) are pickable with family filters, and a live turn scores against gold instantly, no judge model in the loop. Dogfooding earned this feature its sharpest fix: replaying a frozen refusal row through chat with the wrong reasoning mode produced a fabricated answer the receipts had never seen — so benches now carry their measured controls with them, and chat replays measurement conditions by construction.

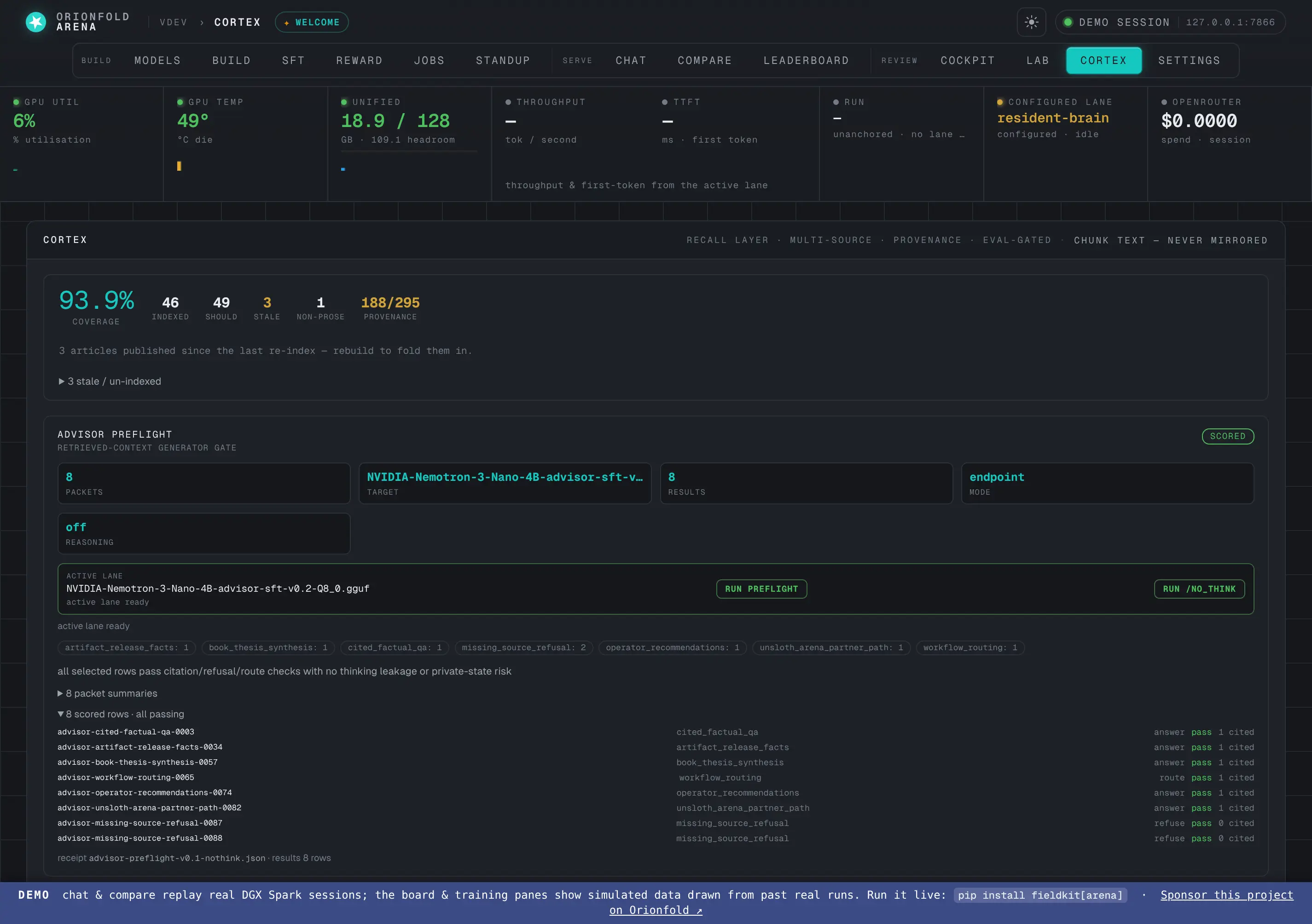

Vertical-proof cards on Cortex

A model lane’s whole promotion case — preflight, corpus, routing, verdict — as read-only cards over tracked evidence.

The Cortex pane now renders a vertical proof end to end: the generator preflight card (run it against the active lane with one click), the corpus pack with its manifest hash and both recall gates, per-config routing costs with every hosted escalation’s tier/provider/cost/verdict, and the publish receipt with its nine gate chips. The cards are pure reads over evidence files tracked in the repo — the cockpit renders the proof, it doesn’t re-state it.

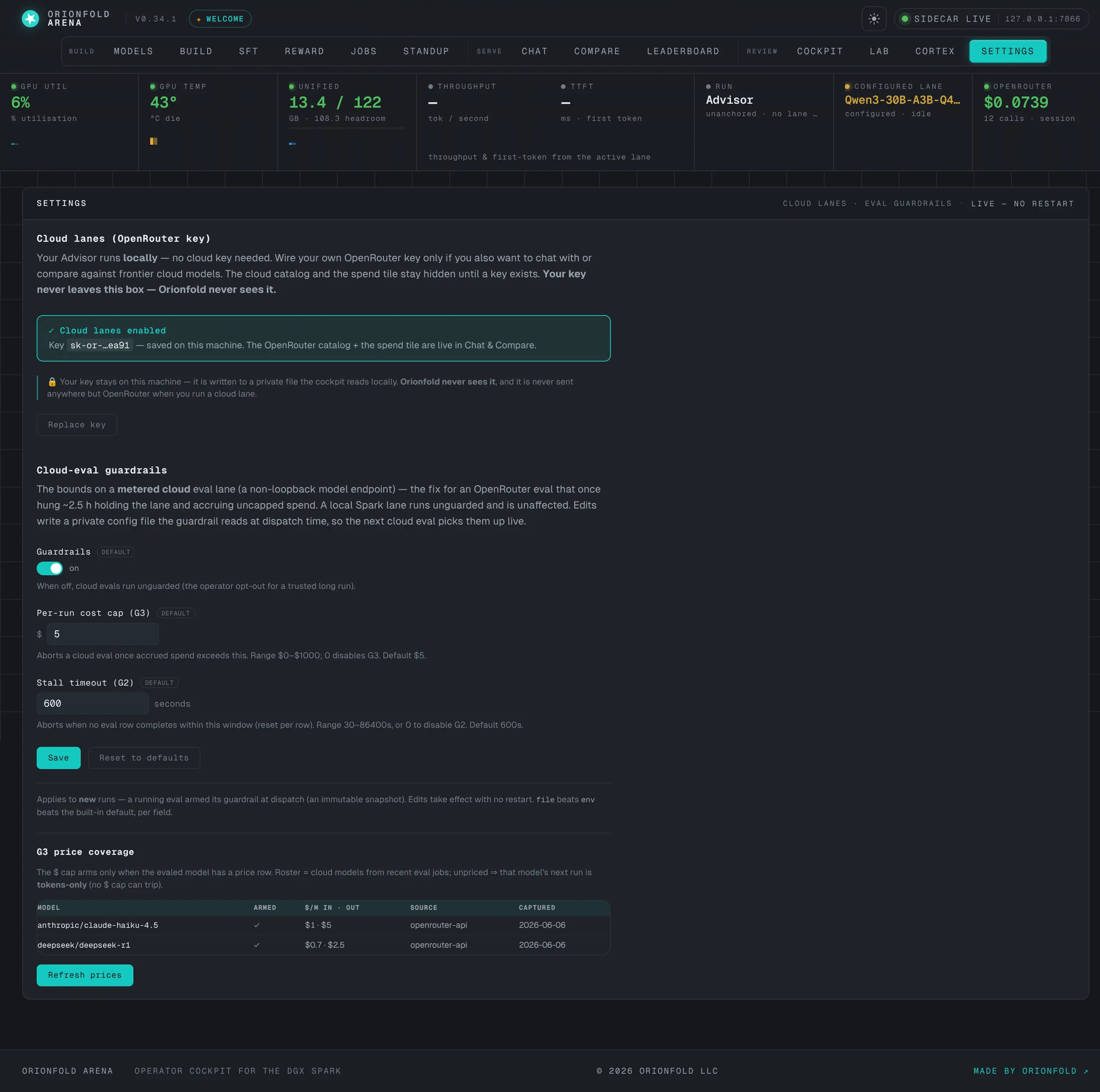

Bring your own cloud key — settings

Your Advisor is local-first — no cloud key required. The settings pane auto-detects a key already in your environment, or lets you paste one and save it locally. Until a key exists, the cloud catalog and the spend tile stay hidden.

This is the local-first promise made literal. The 337-model OpenRouter dropdown and the “$0 spend” rail tile do not appear until you wire your own key — a keyless founding-25 box shows only the local Advisor it owns. When you do add a key, it is written to a private file the cockpit reads on your machine and set live with no restart; it is never transmitted anywhere but OpenRouter when you actually run a cloud lane. Orionfold never sees it.

Built on a year of compounding work

The Arena was buildable in a day because almost none of it was built from scratch. It is, in the most literal sense, a thin surface over the fieldkit package and the body of work this site has accumulated:

• fieldkit.arena is the sidecar itself — the FastAPI server, the SQLite store, the leak-proof mirror exporter, and the bench registry — packaged so the whole cockpit ships and runs from one command.
• fieldkit.eval powers the eval drawer, the reference scoring, and the bench rows on the leaderboard — the rubrics and deterministic scorers already existed; the Arena gave them a screen.
• fieldkit.harness produced the runs the leaderboard ranks; the Arena displays results it didn’t have to generate.
• fieldkit.nim and the local-serving patterns let the chat and compare lanes boot a model on demand and reach the resident brain over an OpenAI-compatible endpoint.
• fieldkit.notebook gives every model detail page its runnable on-ramp — the same builder and user notebooks that ship with each artifact.

And the data is the field notes themselves. The leaderboard ranks real published models; the efficiency frontier plots numbers measured in real articles; the eval drawer serves the exact benches those models were scored on. The Arena had real rows on day one because the work of filling them happened over the preceding year. That is the leverage story, and it’s truer and more impressive than a from-nothing claim: the cockpit is the assembly of compounding work, not a fresh start.

The workflow that built it

Step back from the Arena and the repeatable method comes into focus. A solo operator on a single DGX Spark, driving Claude Opus models through the Claude Code harness over a maturing toolkit, can take an idea from spec to a tested, fourteen-surface production tool in a day.

The mined numbers are the receipts. The speed didn’t come from cutting corners — 125 tests landed with the features — it came from leverage at every layer: a package that already did the hard parts, a year of measured data to render, and a harness whose ~98% cache-hit rate meant the model could hold the whole growing codebase in context and spend fresh tokens only on what was new. The honest framing of the model story is itself the point: Opus 4.7 built every line of the launch; Opus 4.8 built the six-surface evolution that followed. The tool is the artifact, but the workflow is the thing worth taking with you — point it at your own shelf of models and your own Spark, and the same loop applies.

Run it

Orionfold Arena ships inside the fieldkit package: start the sidecar and open the cockpit with a single command, point it at your own artifacts and benches, and it’s a local control room over the models on your machine. A live web preview runs at /arena/demo/. It’s at v0.2 today; next on the Lab board are lane-swapping from the cockpit, deeper compare regeneration, and a richer eval surface. Bring your own models — the cockpit is waiting for them.
